Spectra / Dual Arm Spectra
Surface mounted range of LED wall lights are a perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered asymmetrical light distribution.

Product Description
• Luminaire body made of rectangular extruded aluminium alloy (grade 6063)and non corrosive stainless steel fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 50W LED.
• Die cast aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4449-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

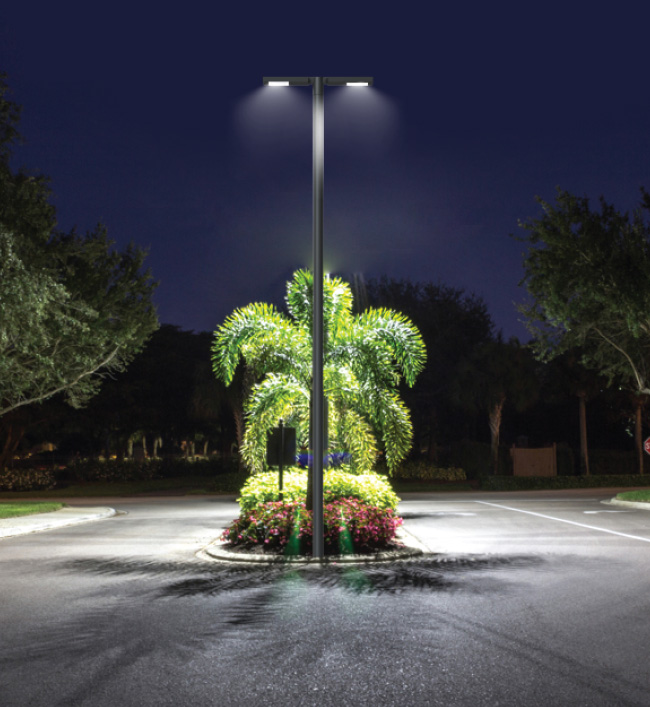

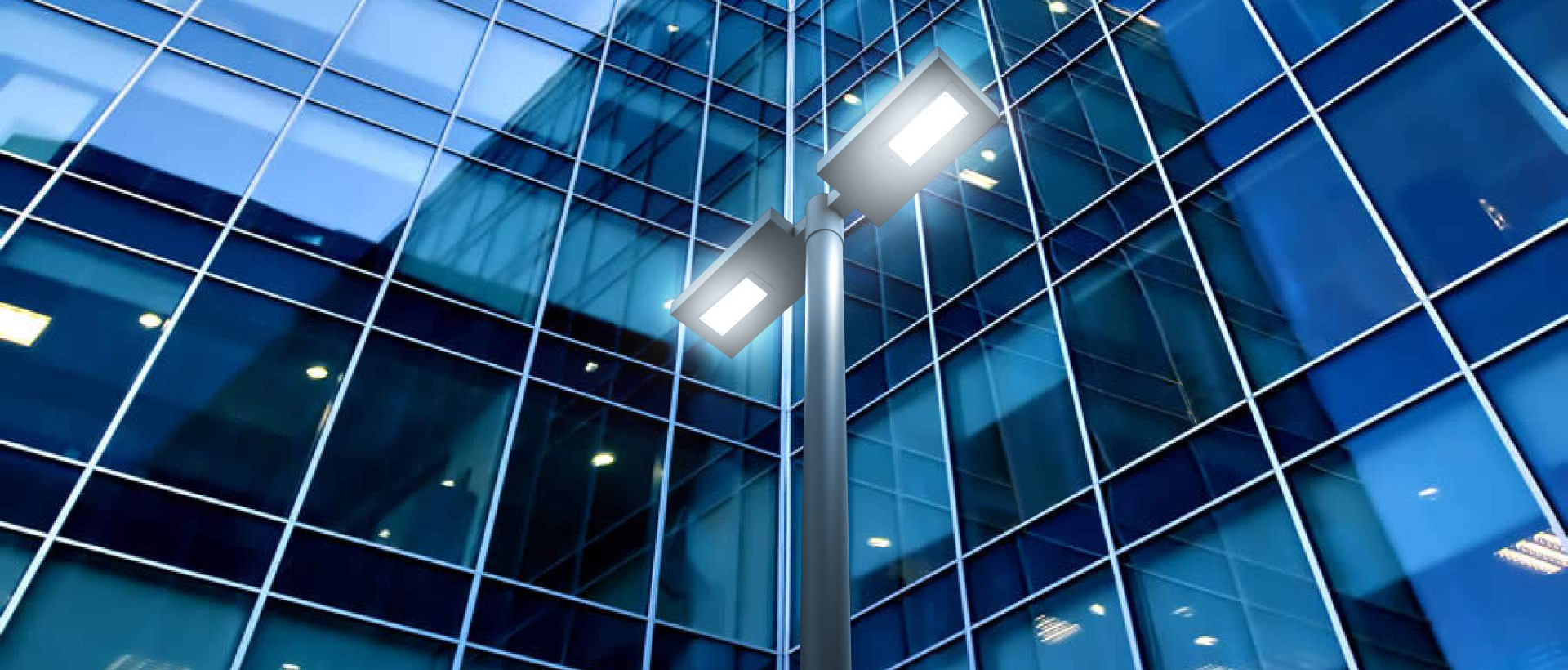

Pathways in Residential buildings,Building facade,Internal passages,Commercial & Business Centers.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page

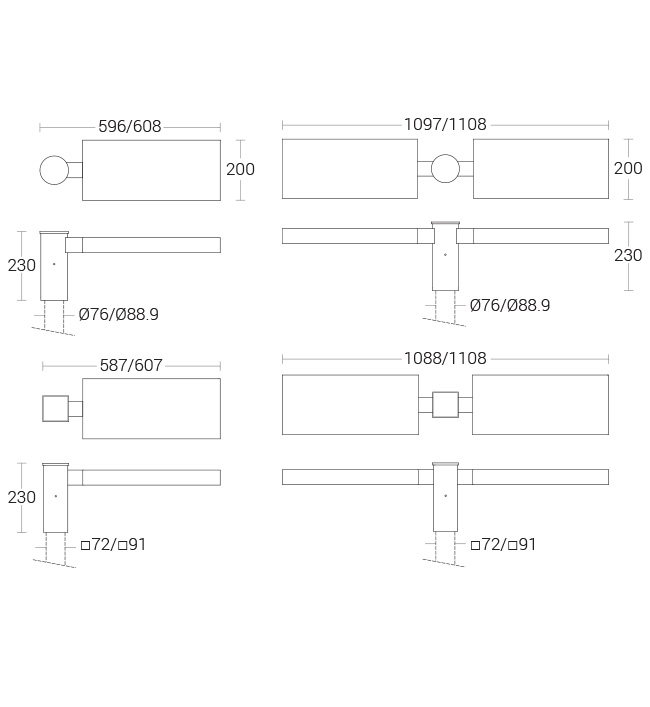

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4435200W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:1103x200x160, D26:1114x200x160, D15:1090x200x160, D16:1110x200x160mmD3
D26
D15
D16
4435.pdf
KL-4434100W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:1103x200x160, D26:1114x200x160, D15:1090x200x160, D16:1110x200x160mmD3
D26
D15
D16
4434.pdf
KL-443250W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:599x200x160, D26:610x200x160, D15:586x200x160, D16:606x200x160mmD3
D26
D15
D16
KL-4432-BATYPEIII-WW.IES
KL-4432-BATYPEIII-CW.IES
KL-4432-BATYPEIII-NW.IES
KL-4432-BATYPEIII-WW.PDF
KL-4432-BATYPEIII-CW.PDF
KL-4432-BATYPEIII-NW.PDF
4432.pdf
KL-4433100W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:599x200x160, D26:610x200x160, D15:586x200x160, D16:606x200x160mmD3
D26
D15
D16
4433.pdf
KL-444950W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens528 x 200 x 52mmW38
Detailed Foundation Drawing
KL-4449-BATYPEIII-WW.IES
KL-4449-BATYPEIII-CW.IES
KL-4449-BATYPEIII-NW .IES
KL-4449-BATYPEIII-WW.PDF
KL-4449-BATYPEIII-CW.PDF
KL-4449-BATYPEIII-NW .PDF
4449.pdf
