Navira

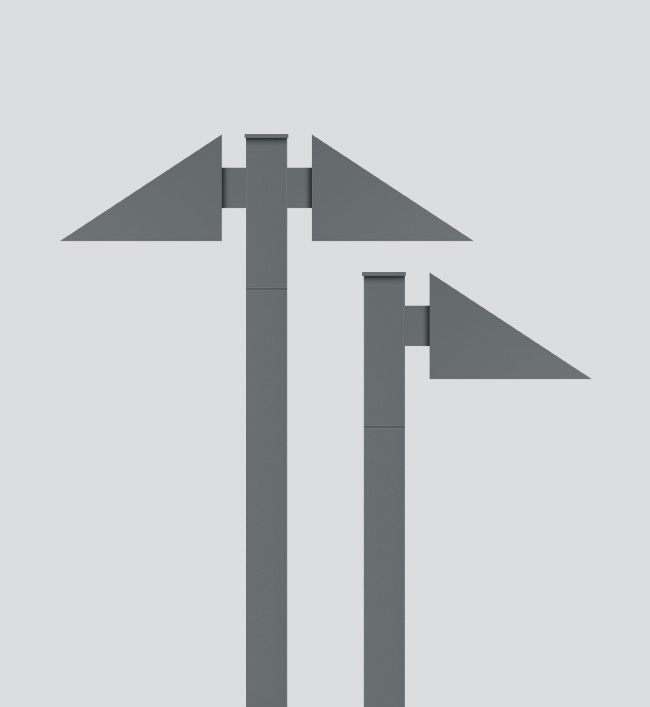

“Dual Navira” pathway luminaire,is an innovative design options to provide visual integration with the environment.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered asymmetrical light distribution.

Product Description
• Luminaire made of die cast aluminium with non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 200W LED.
• Suitable for mounting on 76mm / 88.9mm OD pipe, 72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4448-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

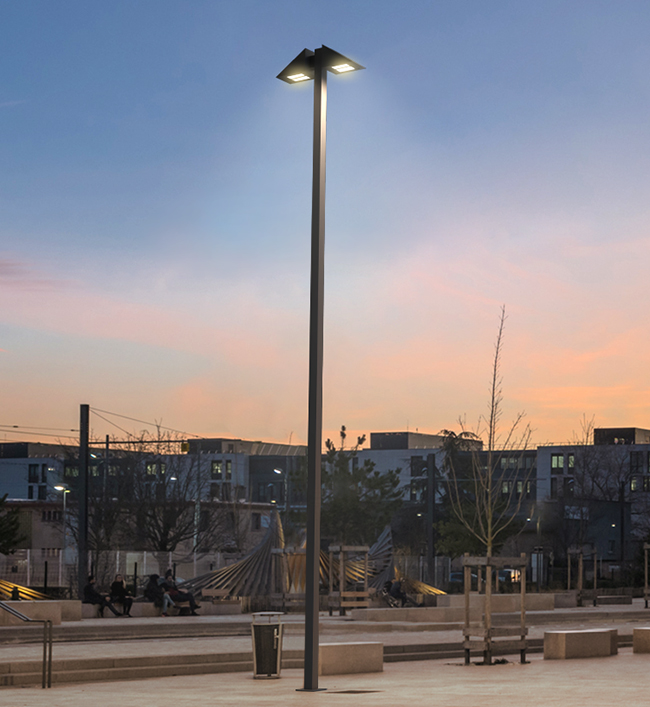

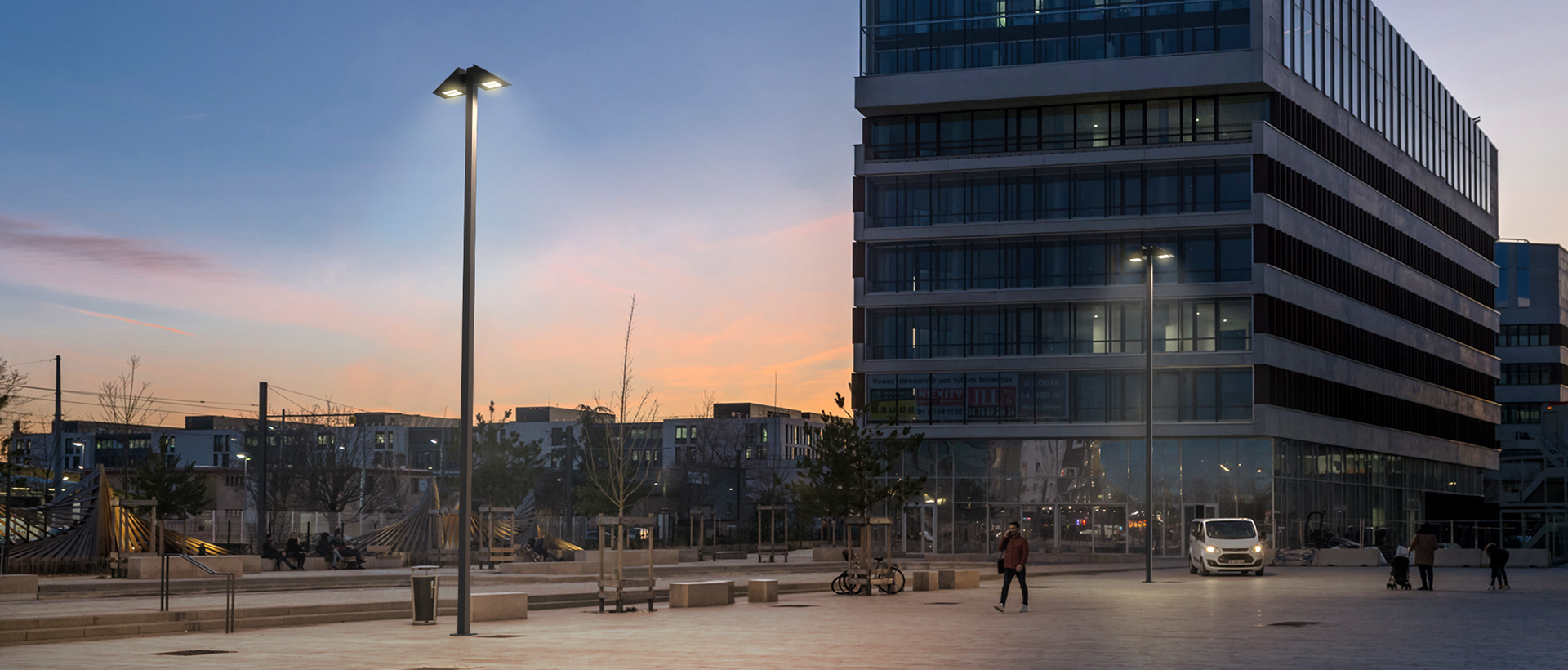

Illuminating parks,Gardens,Commercial complex,Smallar Roadways,Private driveways,Pathways in Residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

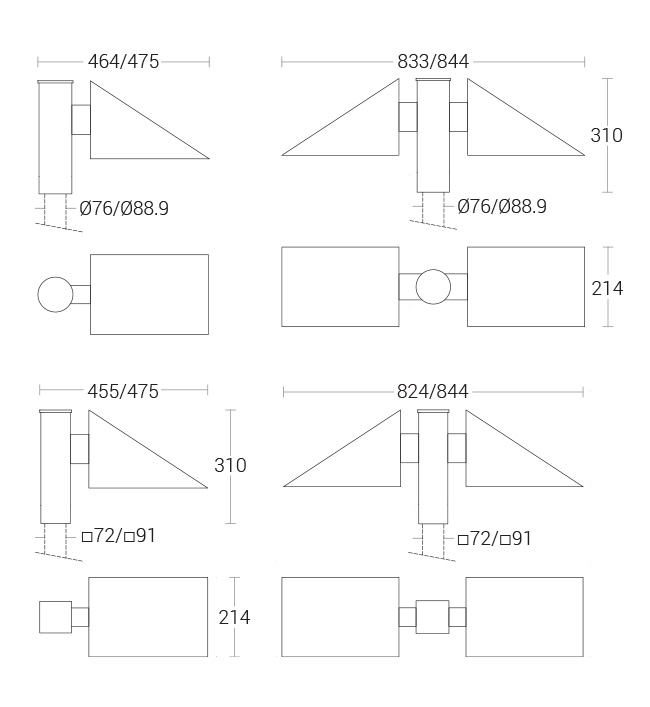

KL-4448200W LED 2700K,3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:833x214x260, D26:844x214x260, D15:824x214x260, D16:844x214x260mmD3
D26
D15
D16
KL-4448-BATYPEIII-WW.IES
KL-4448-BATYPEIII-CW.IES
KL-4448-BATYPEIII-WW.PDF
KL-4448-BATYPEIII-CW.PDF
4448.pdf
KL-4447100W LED 2700K,3000K,4000K,5700K BA:Type III, Polycarbonate Optical LensD3:464x214x260, D26:475x214x260, D15:455x214x260, D16:475x214x260mmD3
D26
D15
D16
KL-4447-BATYPEIII-WW.IES
KL-4447-BATYPEIII-CW.IES
KL-4447-BATYPEIII-WW.PDF
KL-4447-BATYPEIII-CW.PDF
4447.pdf
