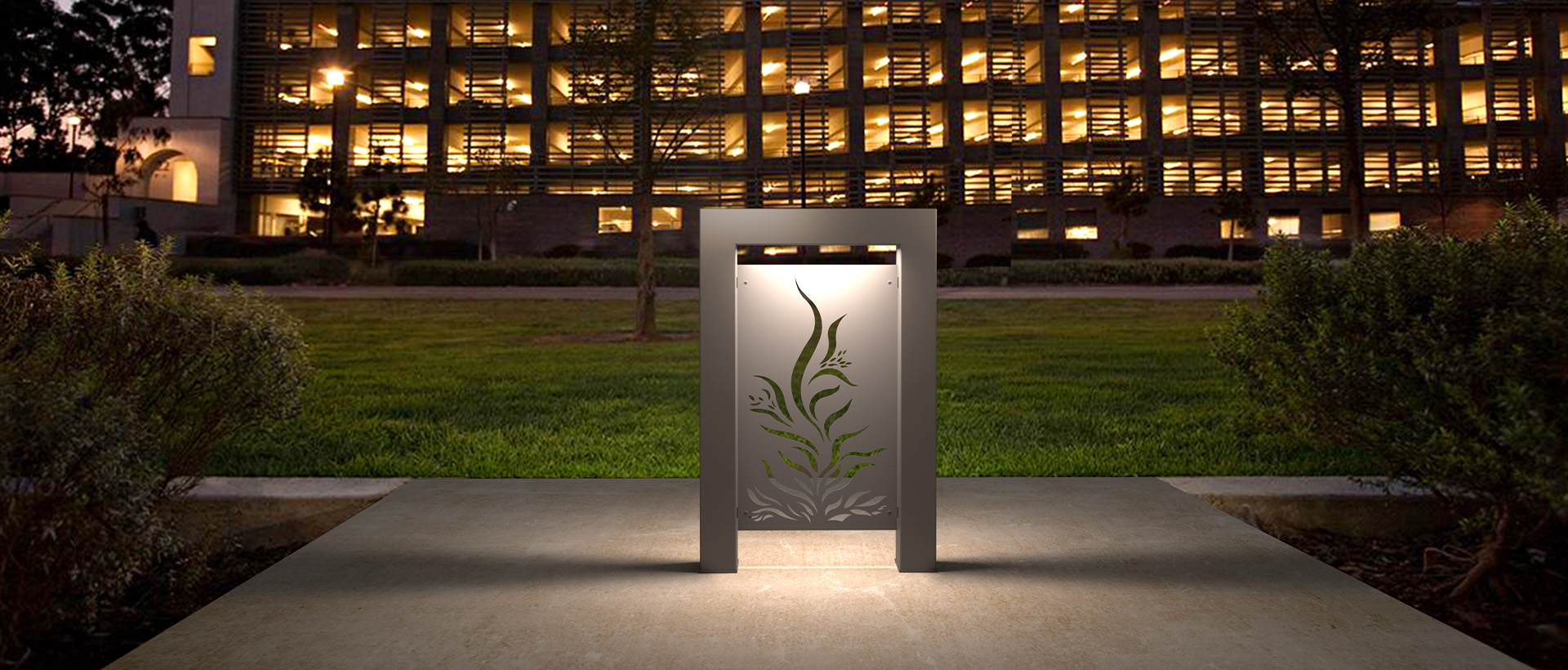

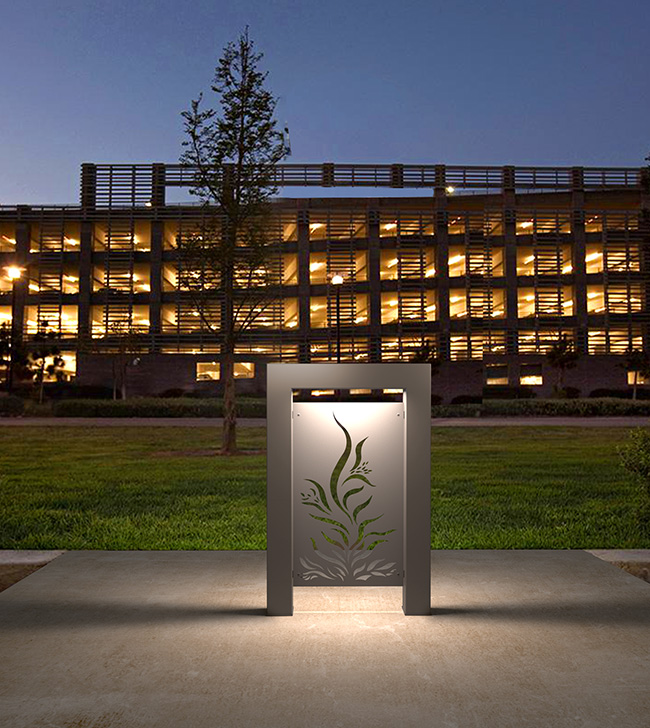

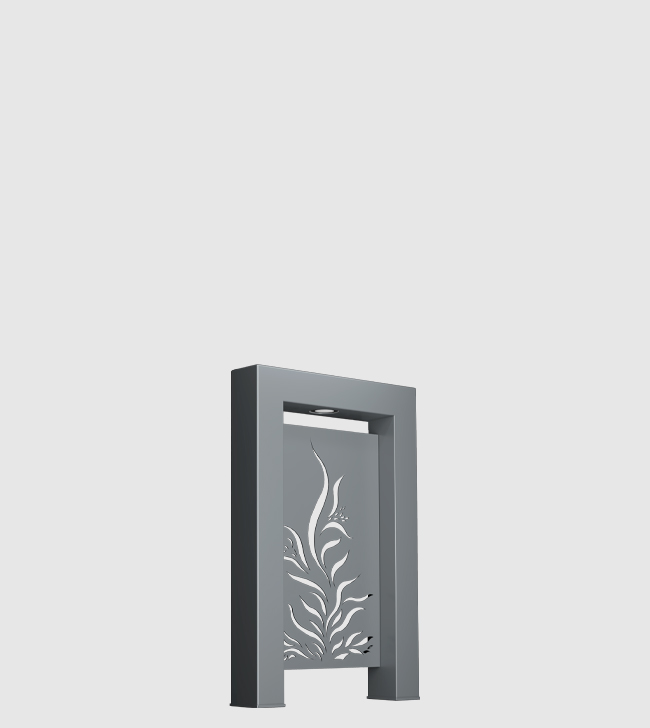

Marcona Bollard
A decorative LED bollard designed to provide soft,uniform light. These luminarie offer shielded glare free illumination of ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture. Clean Lines and pure form are the underlying elements of this LED bollard

Product Description
• Luminaire body made of rectangular extruded aluminium tube with aluminium components and SS fasteners.
• Laser cutting design made of GI sheet.
• Clear toughened glass.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4763-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,6500K

roduct Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption

Area of Application
Suitable for low/medium Public areas.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

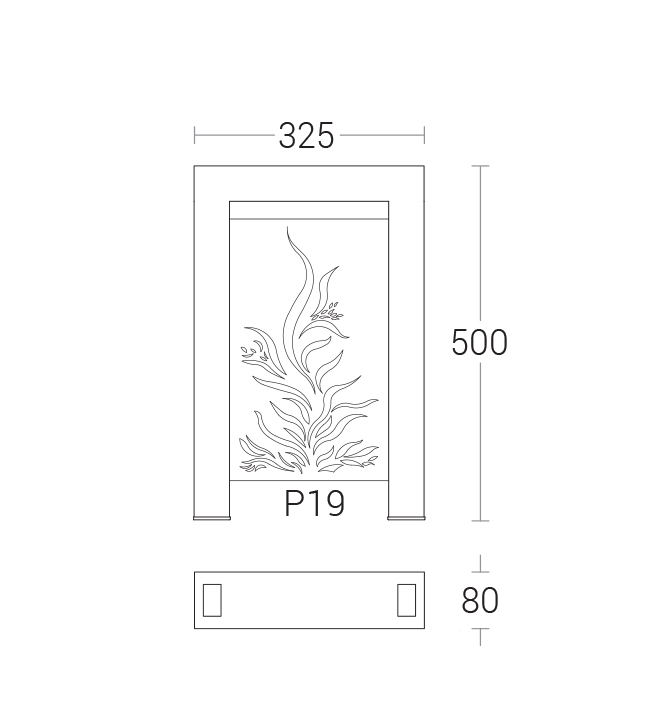

KL-476312W LED 2700K,3000K,4000K,6500K, Clear Toughened Glass325 x 80 x 500mmM47
Detailed Foundation Drawing
KL-4763-BA--WW.IES
KL-4763-BA--CW.IES
KL-4763-BA--NW.IES
KL-4763-BA--WW.PDF
KL-4763-BA--CW.PDF
KL-4763-BA--NW.PDF
4763.pdf
