Jado Series

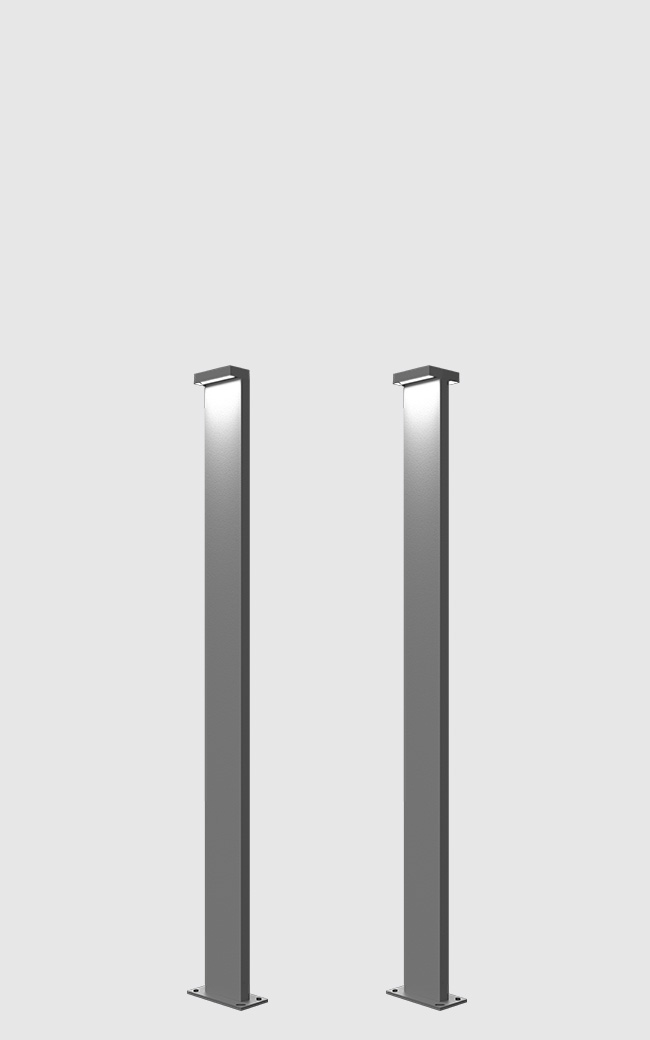

A decorative column light designed with single/double sided light output to provide soft,flat beam light distribution.These luminaries offer shielded glare free illumination on ground surface.Clean Lines and pure form are the underlying elements in this series of column light.

Product Description
• Luminaire body made of extruded aluminium tube (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Non yellowing UV stabilized clear acrylic diffuser.
• MS mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4186-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

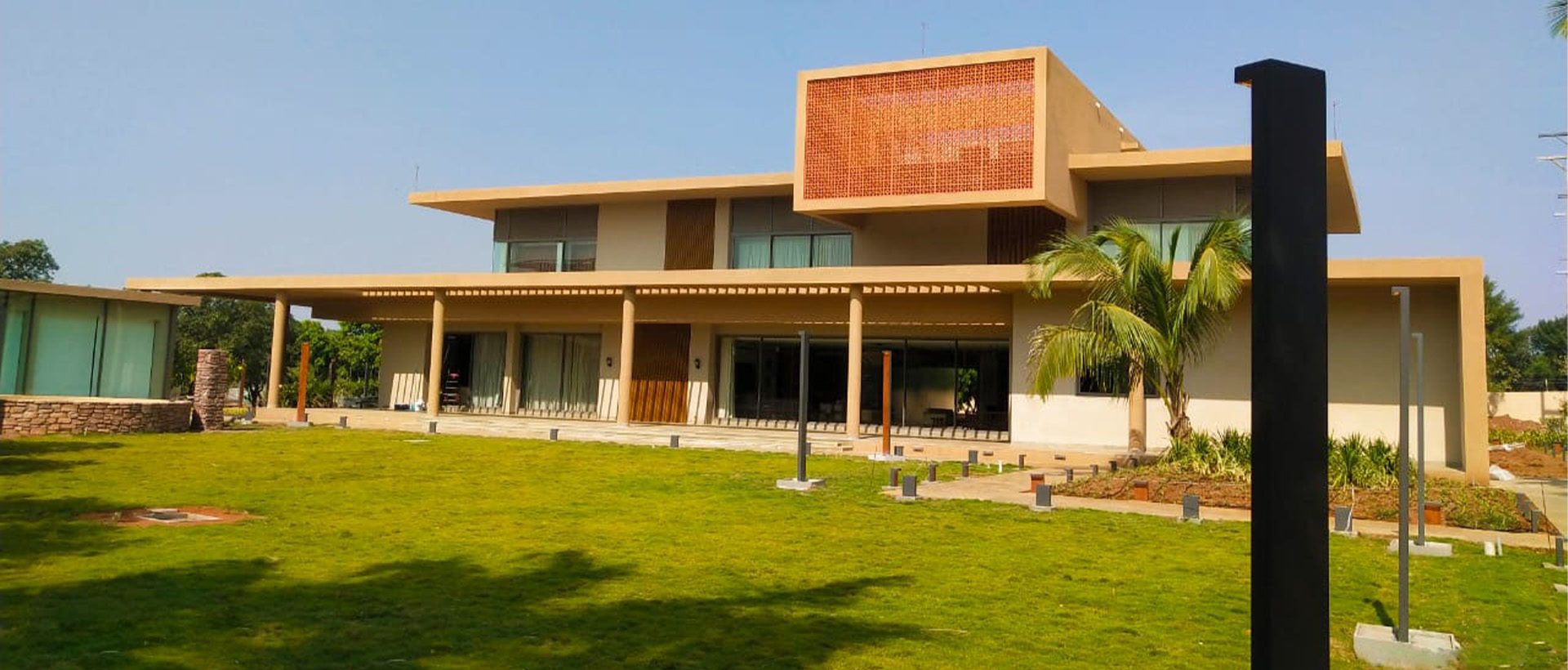

Suitable for Private & Public areas,Illuminating Driveways,Pathways,Building surrounds,Entrances,Squares & Gardens,Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

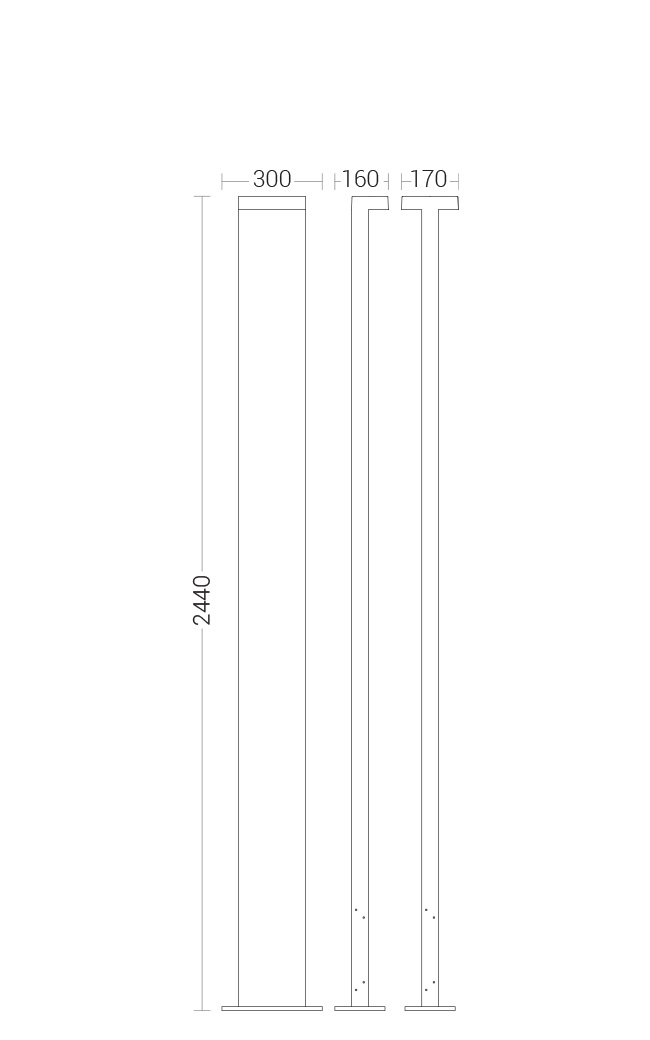

KL-41872 x 24W LED 2700K,3000K,4000K,5700K, Clear Acrylic300 x 170 x 2440mmM35
Detailed Foundation Drawing
4187.pdf
KL-41861 x 24W LED 2700K,3000K,4000K,5700K, Clear Acrylic300 x 160 x 2440mmM35
Detailed Foundation Drawing
4186.pdf
