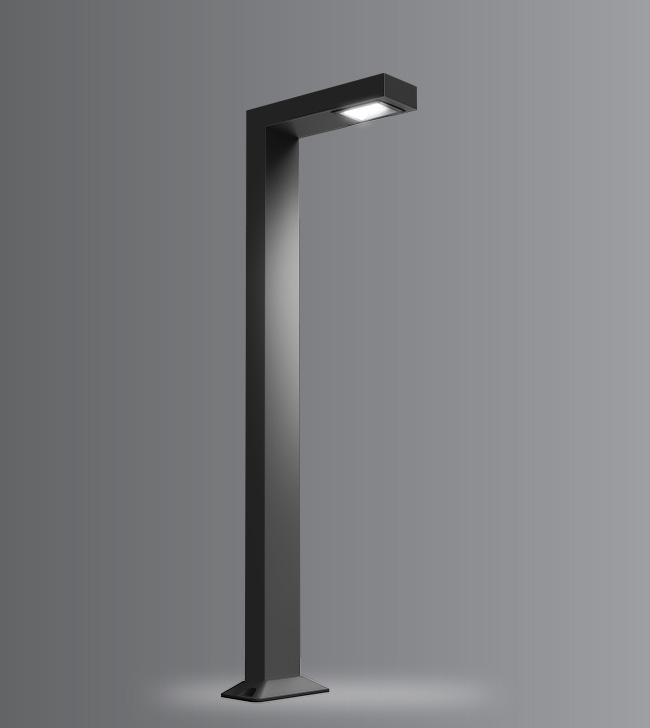

Polar Bollard
A minimalist decorative LED bollards designed to provide soft,uniform light.These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture.Clean Lines and pure form are the underlying elements in this series of LED bollards.

Product Description
• Luminaire body made of rectangular extruded aluminium tube with aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Silicone gasket.
• Mounting plate die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7069-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

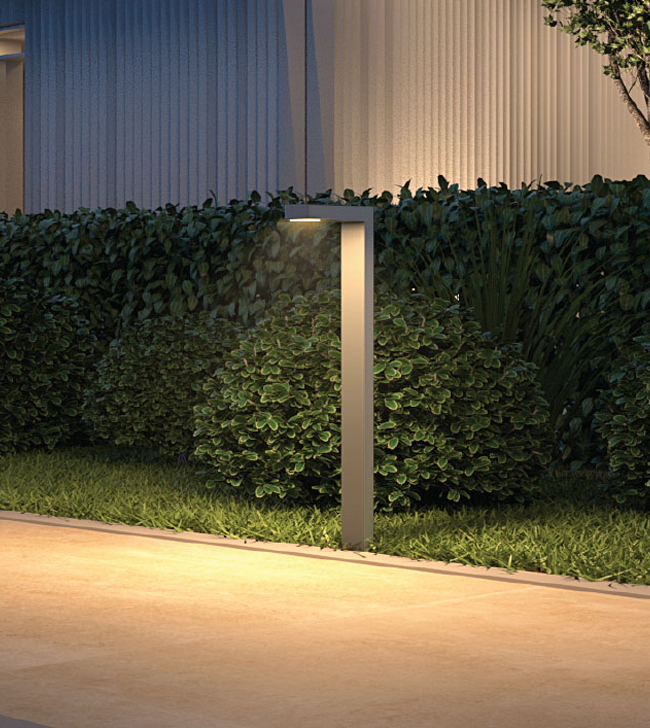

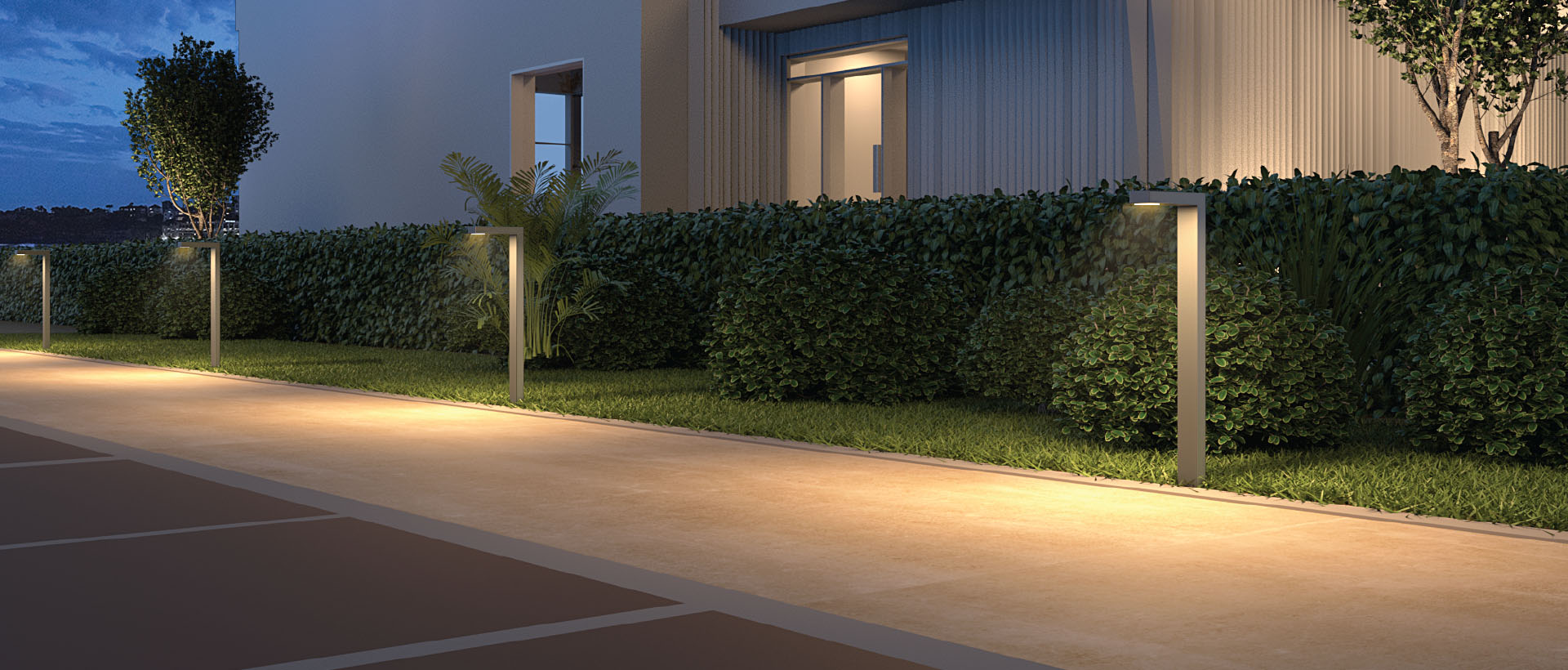

Suitable for Residential & Public areas for Illuminating Driveways,Pathways,Flowerbeds,Entrances,Squares & Gardens.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-706912W LED 2700K,4000K,5700K, Clear Polycarbonate Optical Cover270 x 80 x 1000mmM47
Detailed Foundation Drawing
KL-7069-BA--WW.IES
KL-7069-BA--WW.PDF
7069.pdf
KL-7069.txt
