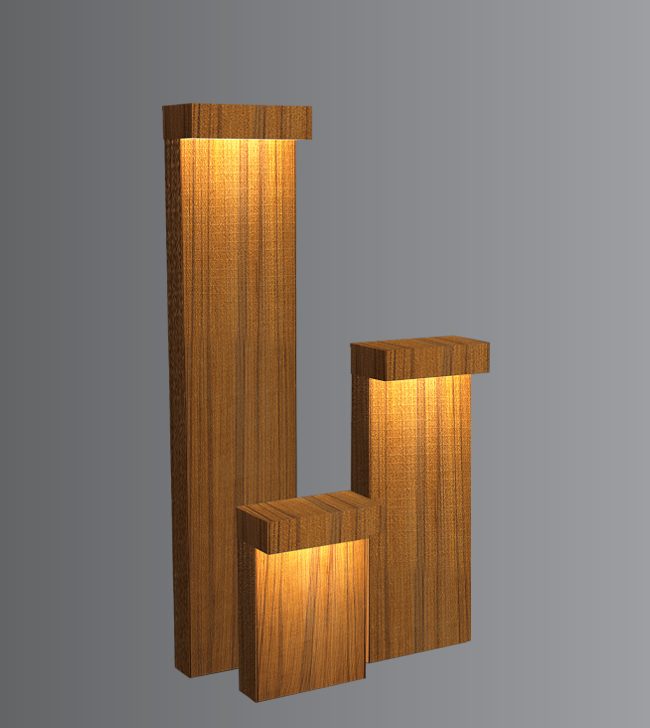

Jado Wood Bollard

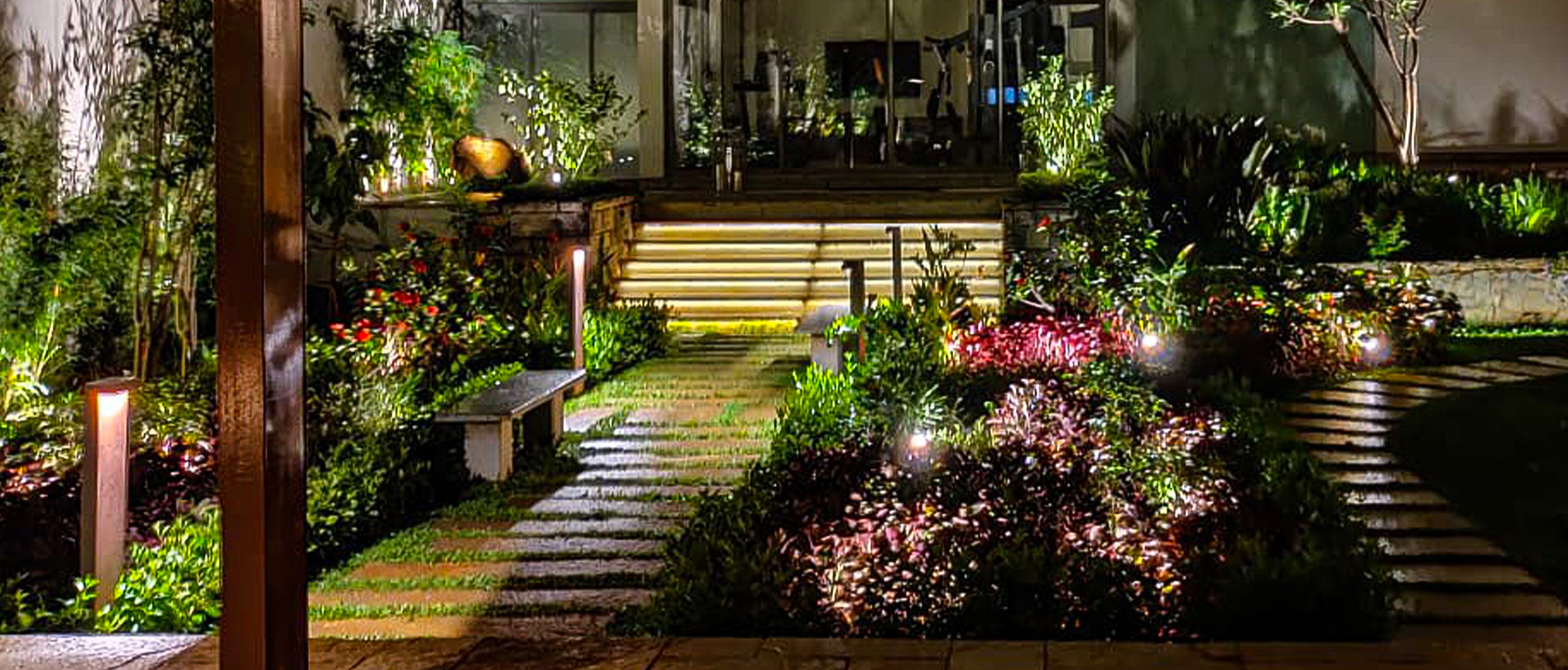

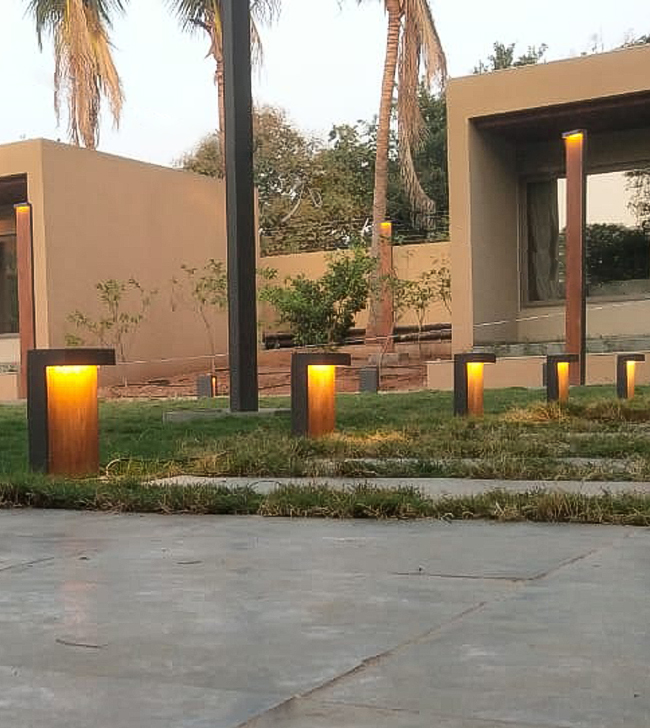

A decorative LED bollards designed with single sided light output to provide soft,flat beam light distribution. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture. Clean Lines and pure form are theunderlying elements in this series of LED bollards.

Product Description
• Luminaire body made of rectangular extruded aluminium tube (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• For optimum coordination with lighting situation,these luminaries can be supplied in three different heights.
• Non yellowing UV stabilized clear acrylic diffuser.
• Mounting plate die cast aluminium double powder coat with an anchorage unit.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7543-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for low / medium public areas.

Available Finish
Bamboo / Teak

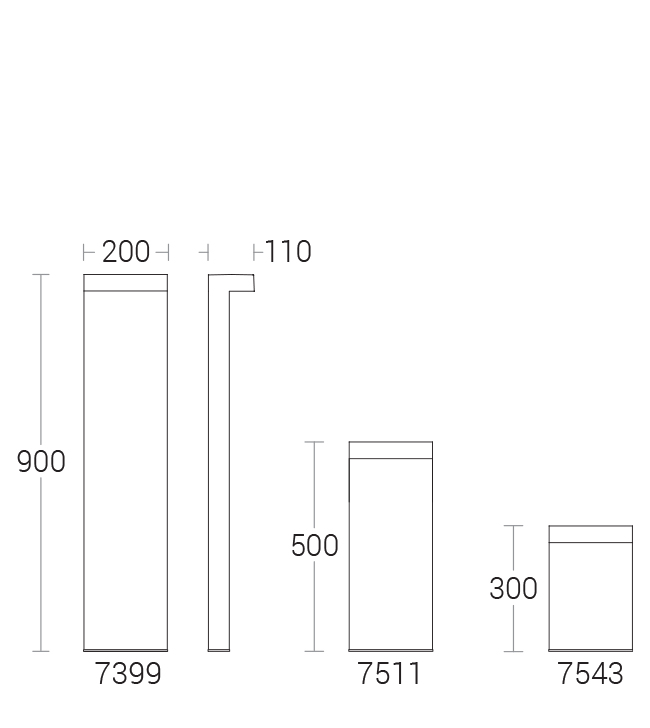

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-754312W LED 2700K,3000K,4000K,5700K, Clear Acrylic200 x 110 x 300mmM24
Detailed Foundation Drawing
KL-7543-BA--WW.IES
KL-7543-BA--CW.IES
KL-7543-BA--NW.IES
KL-7543-BA--WW.PDF
KL-7543-BA--CW.PDF
KL-7543-BA--NW.PDF
7543.pdf
KL-751112W LED 2700K,3000K,4000K,5700K, Clear Acrylic200 x 110 x 500mmM24
Detailed Foundation Drawing
KL-7511-BA--WW.IES
KL-7511-BA--NW.IES
KL-7511-BA--CW.IES
KL-7511-BA--WW.PDF
KL-7511-BA--NW.PDF
KL-7511-BA--CW.PDF
7511.pdf
KL-739912W LED 2700K,3000K,4000K,5700K, Clear Acrylic200 x 110 x 900mmM24
Detailed Foundation Drawing
KL-7399-BA--WW.IES
KL-7399-BA--CW.IES
KL-7399-BA--NW.IES
KL-7399-BA--WW.PDF
KL-7399-BA--CW.PDF
KL-7399-BA--NW.PDF
7399.pdf
