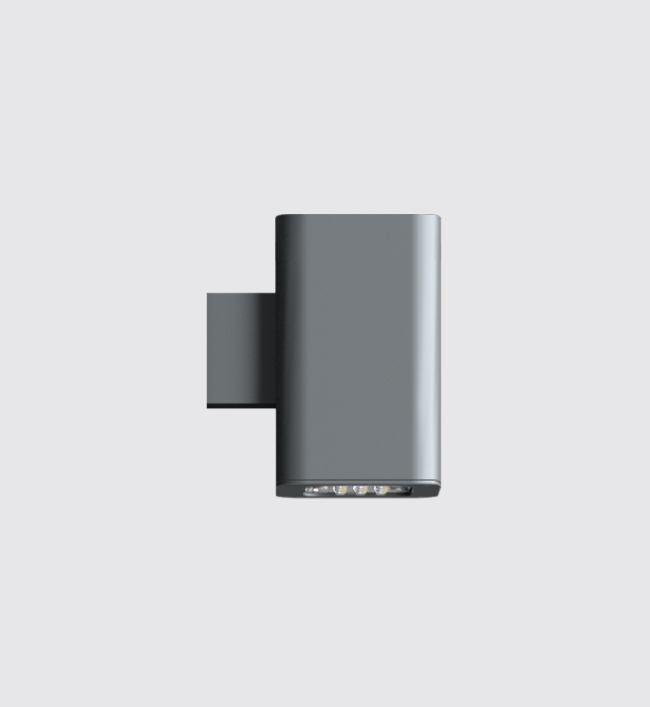

“Cubus” wall luminaire,is an innovative design options to provide visual integration with the environment.Aesthetically shaped wall mounted luminaire with fully shielded light source for striking light effects.Product offered asymmetrical light distribution.

Product Description
• Luminaire made of extruded aluminium square tube (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W LED.
• Silicone gasket.
• Die cast aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4970-CCT (Colour Temperature).
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

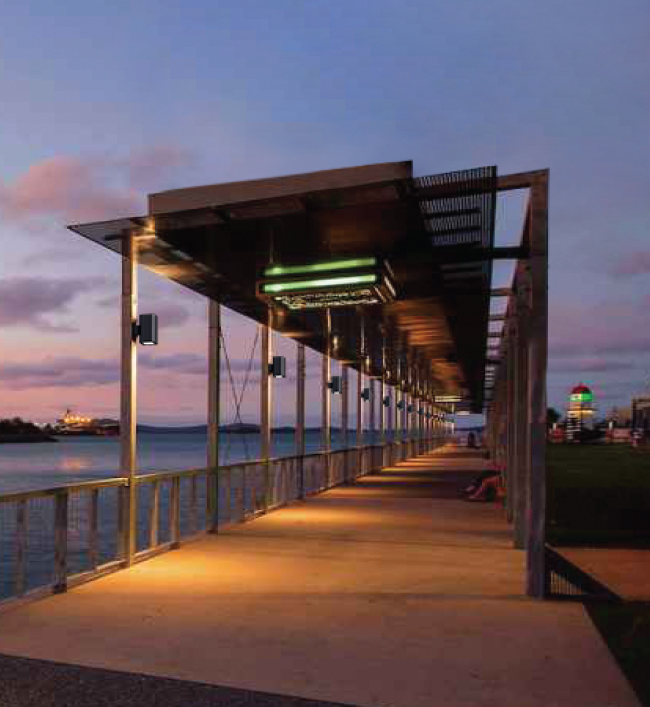

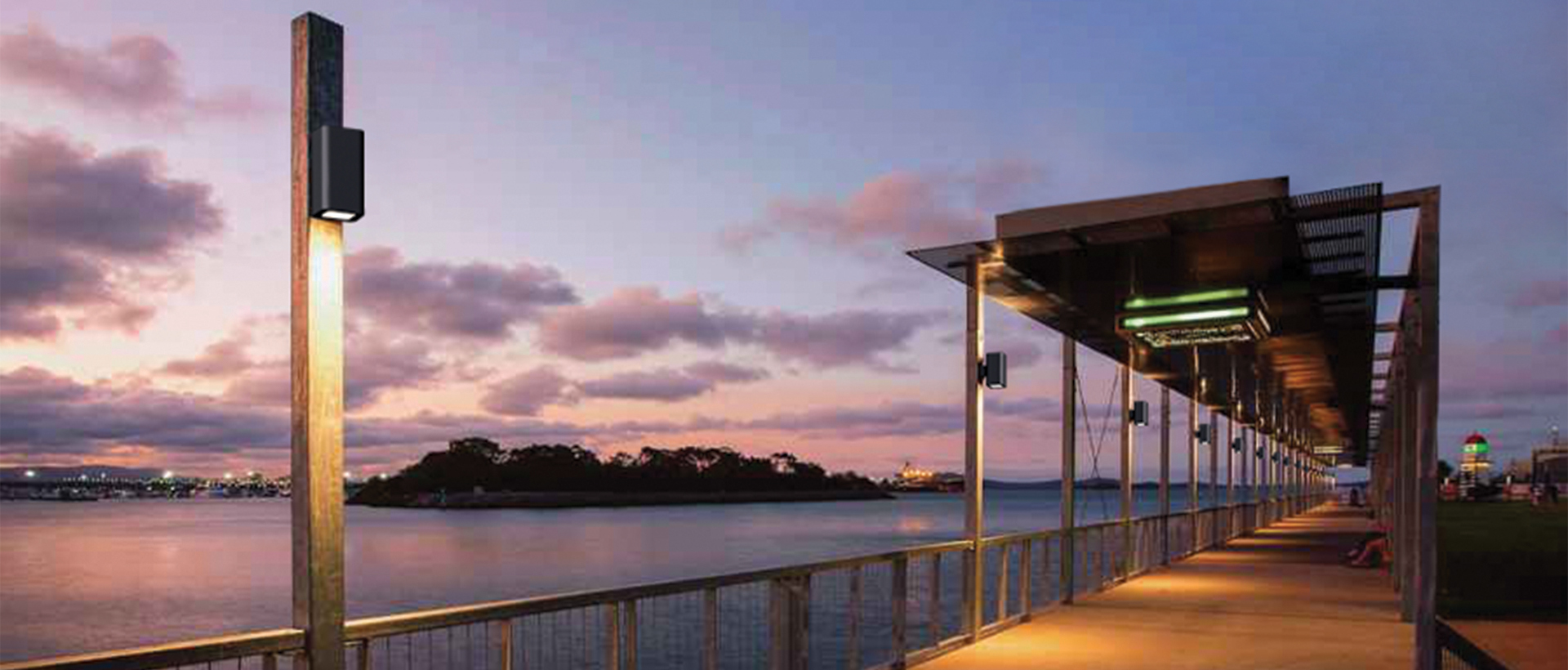

Retail sector,Residential,Building facade,Commercial centres,Pathways,Internal passages,Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
