Myura
The integral design and weatherproof features of Myura makes it ideal for outdoor use, ensuring durability and functionality even in harsh conditions. The improved protection against dust, moisture, and insects is particularly noteworthy, as it helps maintain the luminaire's performance over time while minimizing maintenance needs.

Material
Body : Spun aluminium & Gravity die cast aluminium
Impact Protection : IK05 (Acrylic) / IK09 (Polycarbonate)
Ingress Protection : IP65
Diffuser : A9 : Clear acrylic / A12 : Clear polycarbonate
Gasket : Silicone gasket
Mounting : Internally threaded pipe of designation M30

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV / 6KV

Product Configurations
Wattage : 30W / 50W
Light Distribution : Symmetrical / Type II
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60000 H

Area of Application

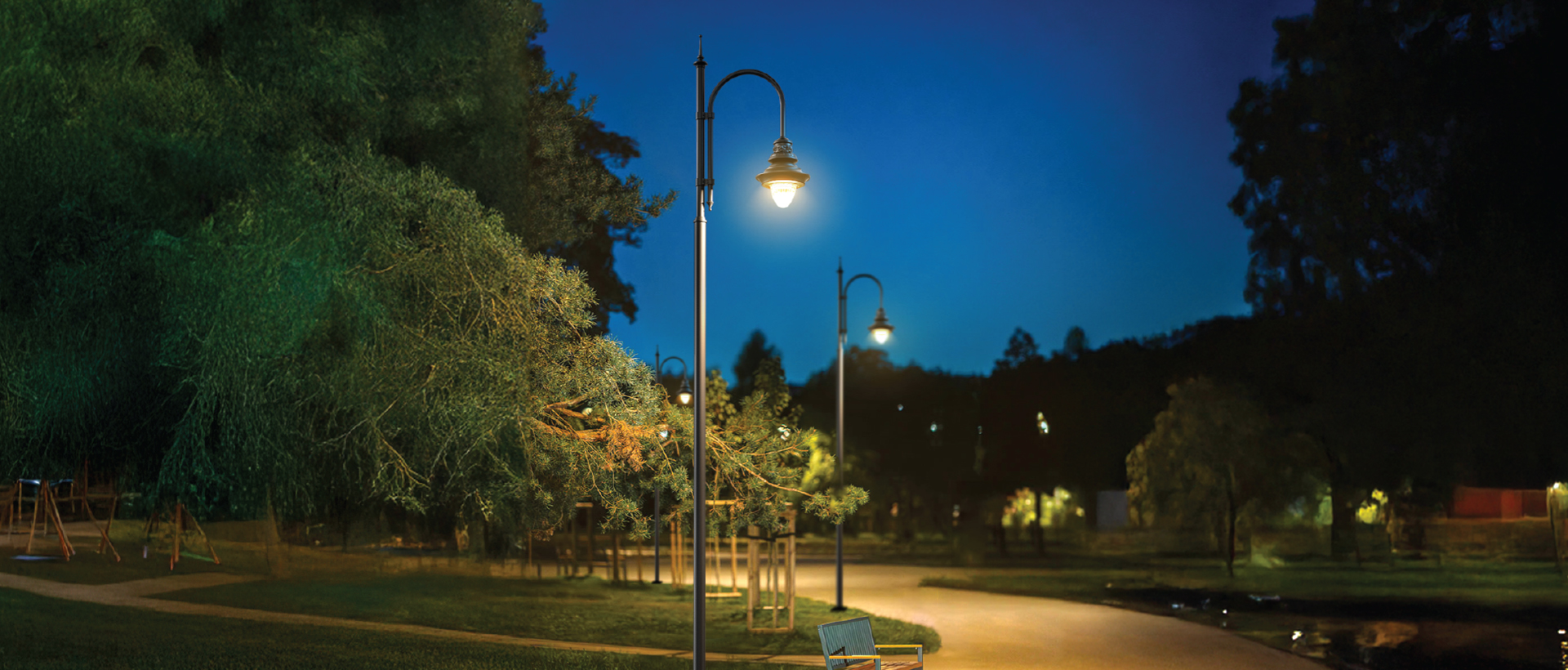

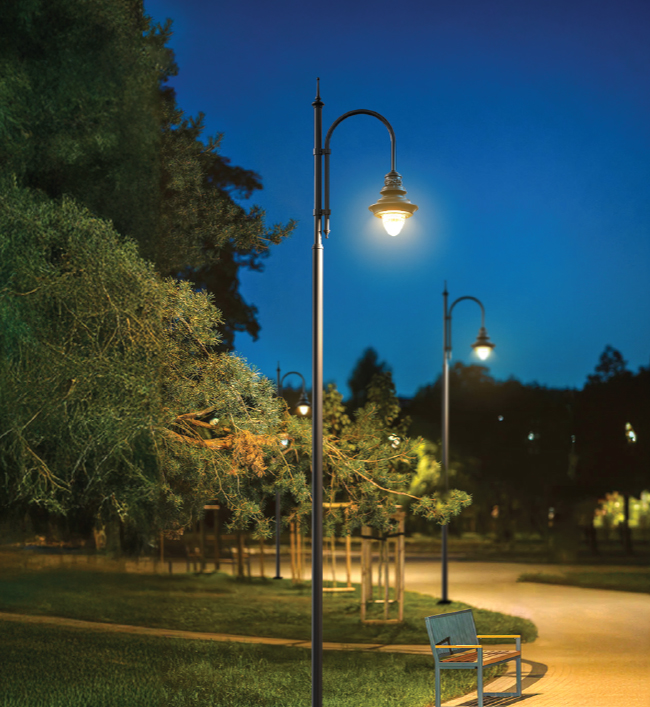

Gardens, Smaller Roadways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
RAL 9004 Black & Gold
RAL 9007 Grey aluminium & Gold
RAL 7016 Anthracite grey & Gold
Graphite grey & Gold

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

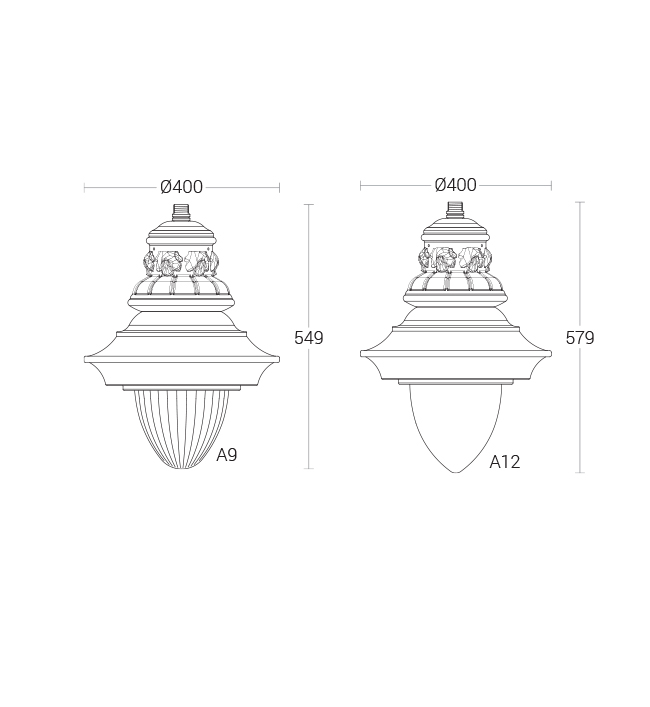

2439530W,50W LED 2700K,3000K,4000K,5700K BA:Type II,Symmetrical, A9 - Clear Acrylic,A12 - Clear PolycarbonateA9 : Ø400 x 549, A12 : Ø400 x 579mmD4
24395.pdf
