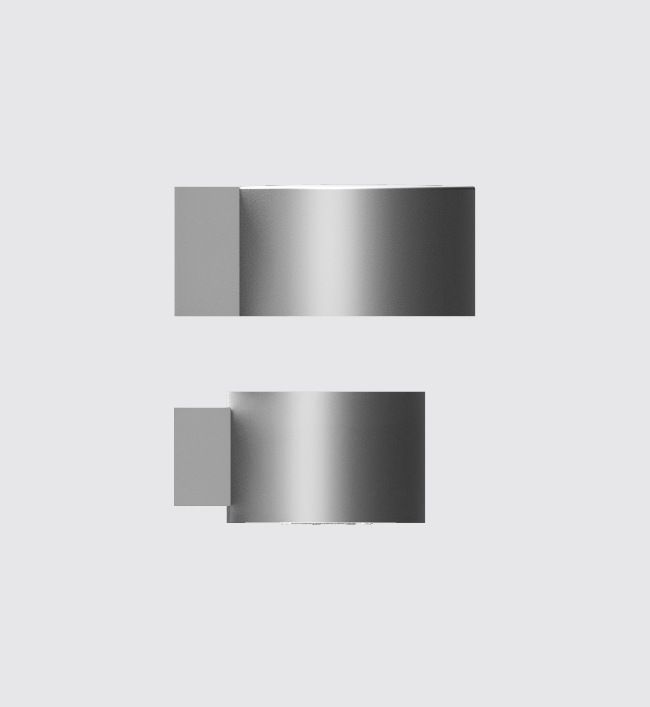

Kayal Mini / Kayal

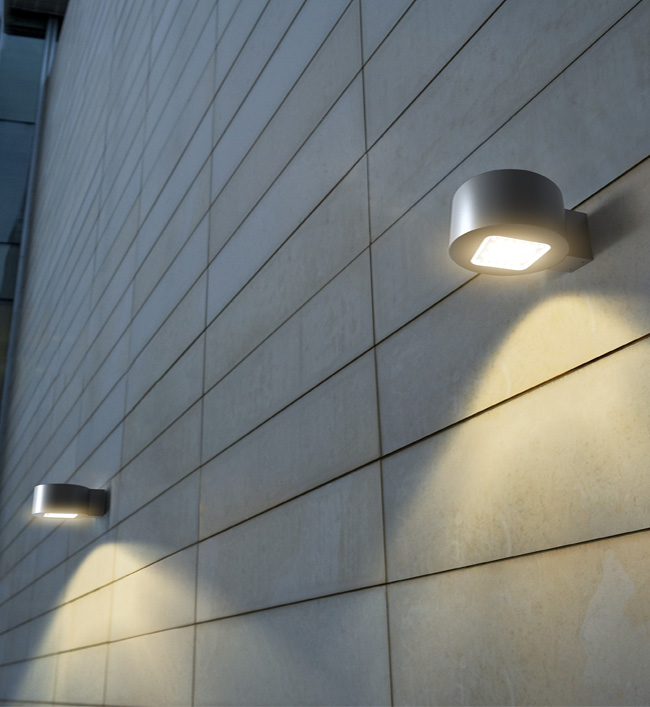

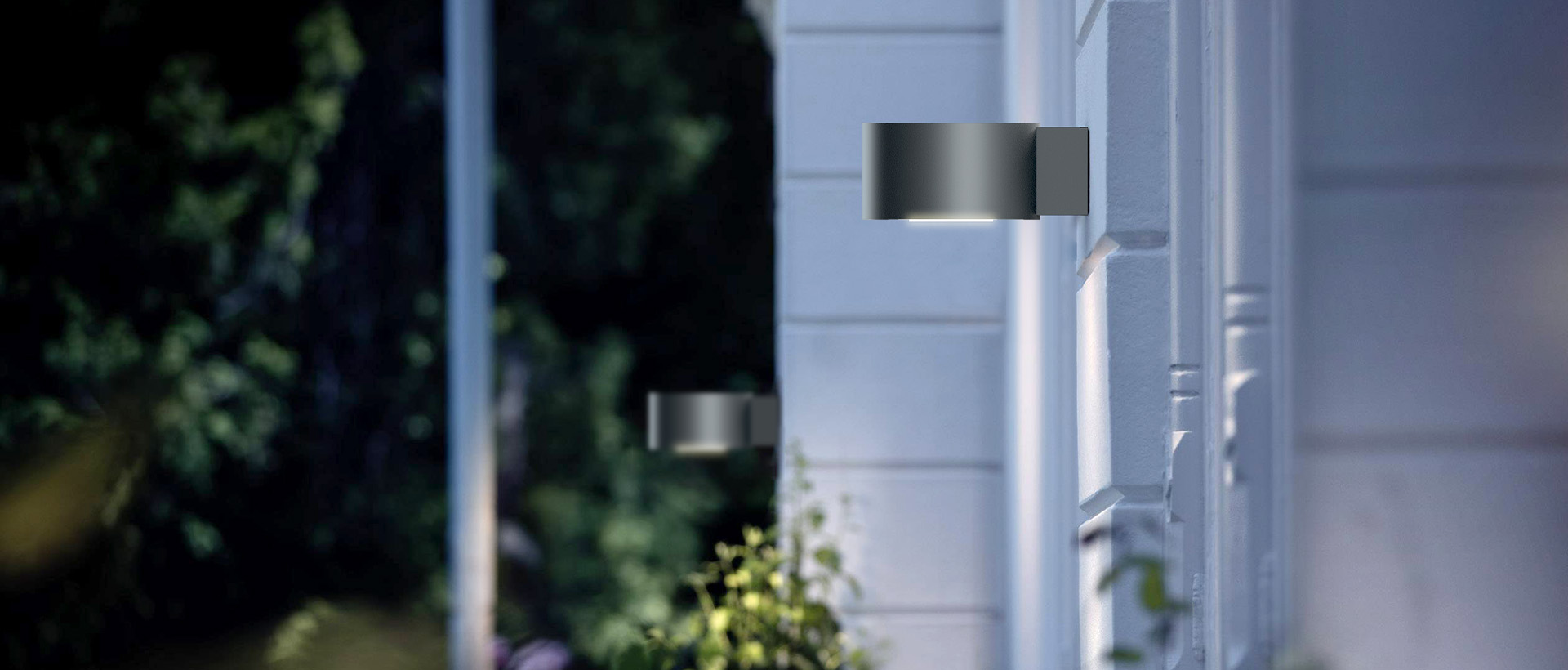

Surface mounted range of LED wall light is perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered asymmetrical light distribution.

Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W LED.
• Die Cast aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4370-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Building facade,Commercial centres,Internal Passages,Walkways,Structures,Pathways in residential buildings & Office Complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

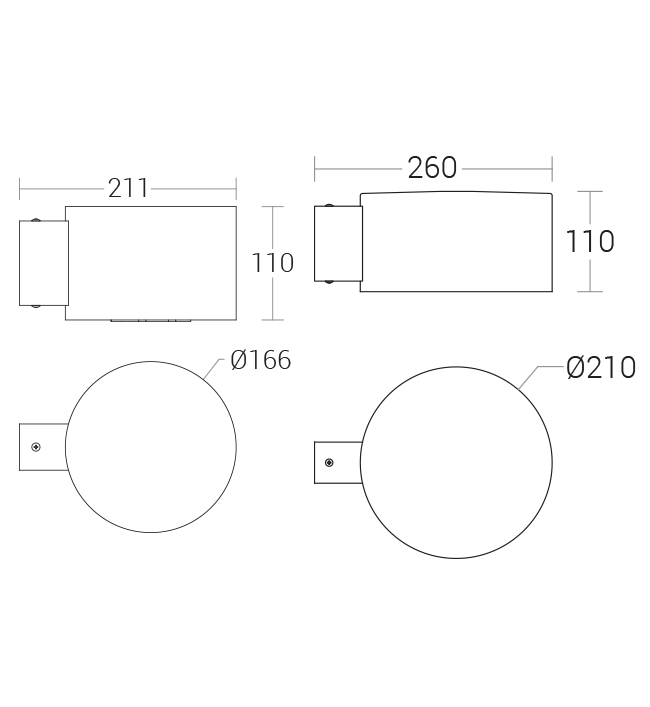

KL-437150W LED 2700K,3000K,4000K,5700K BA:Type IV, Clear Toughened Glass260 x Ø210 x 110mmW33
Detailed Foundation Drawing
KL-4371-BAAsymmetrical-WW.IES
KL-4371-BAAsymmetrical-CW.IES
KL-4371-BAAsymmetrical-NW.IES
KL-4371-BAAsymmetrical-WW.PDF
KL-4371-BAAsymmetrical-CW.PDF
KL-4371-BAAsymmetrical-NW.PDF
4371.pdf
KL-4371.txt
KL-437030W LED 2700K,3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens211 x Ø166 x 110mmW33
Detailed Foundation Drawing
KL-4370-BATYPEII-WW.IES
KL-4370-BATYPEII-CW.IES
KL-4370-BATYPEII-NW.IES
KL-4370-BATYPEII-WW.PDF
KL-4370-BATYPEII-CW.PDF
KL-4370-BATYPEII-NW.PDF
4370.pdf
