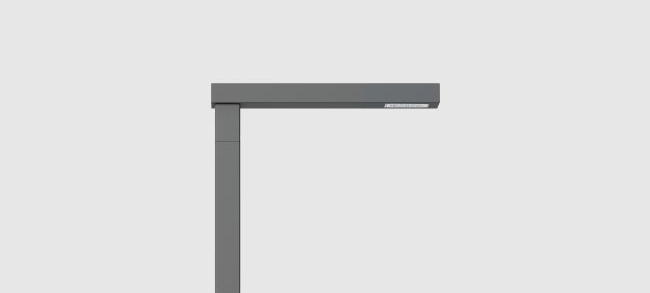

Mega Polar / Dual Mega Polar - Vertical Mounting
Innovative Design options to provide Visual integration with the environment.High Brightness,LED Light source do not pose any environment risks.
Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.Long life span with very low maintenance.

Product Description
• Luminaire body made of extruded aluminium (grade 6063) and non corrosive SS fasteners.
• Polycarbonate optical lens.

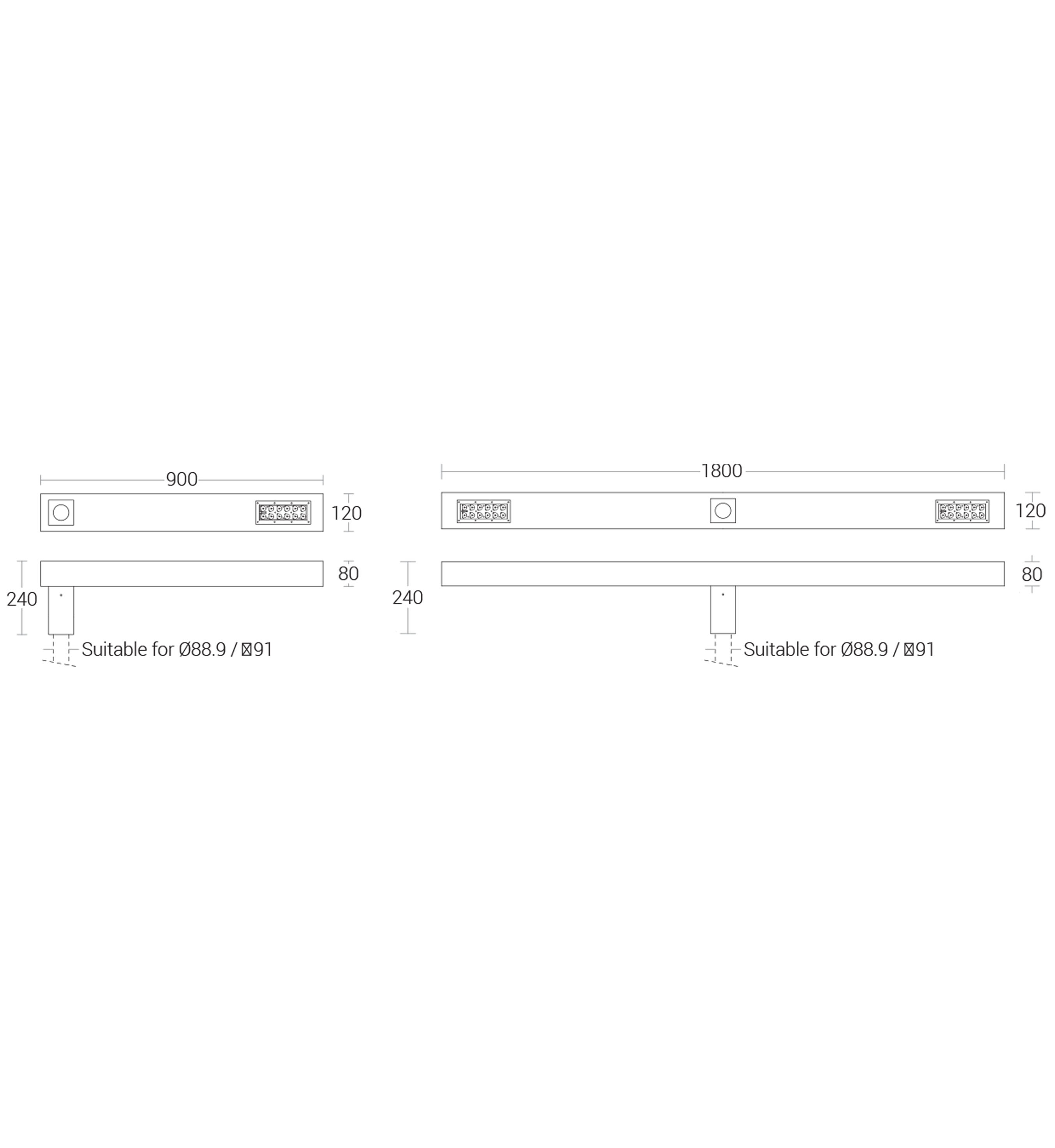

• Suitable for mounting on 88.9mm OD Pipe / 91mm square Pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4421-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

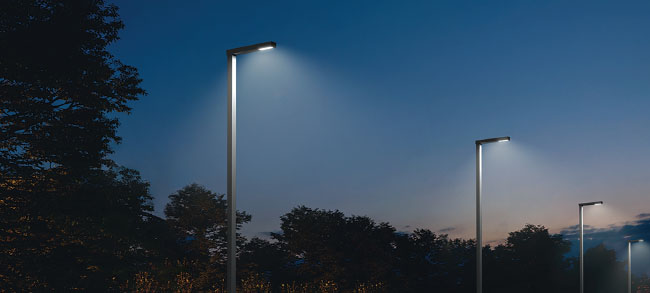

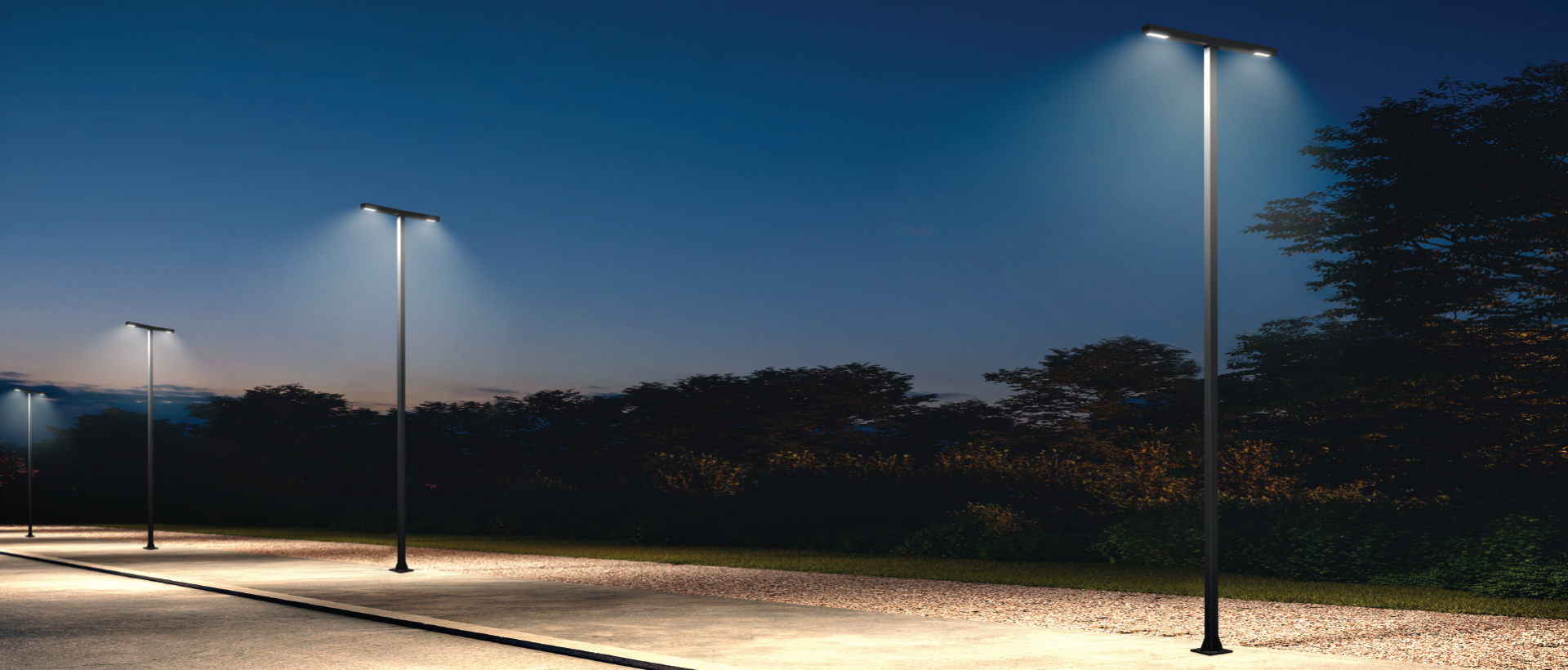

Street Lighting,Roads and highways,Private driveways,Residential area lighting,Courtyards,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4423100W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens1800 x 120 x 240mmD26
D16
4423.pdf
KL-4424120W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens1800 x 120 x 240mmD26
D16
4424.pdf
KL-442150W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens900 x 120 x 240mmD26
D16
KL-4421-BATYPEIII-WW.IES
KL-4421-BATYPEIII-CW.IES
KL-4421-BATYPEIII-NW.IES
KL-4421-BATYPEIII-WW.PDF
KL-4421-BATYPEIII-CW.PDF
KL-4421-BATYPEIII-NW.PDF
4421.pdf
KL-442260W LED 3000K,4000K,5700K BA:Type III, Polycarbonate Optical Lens900 x 120 x 240mmD26
D16
4422.pdf
