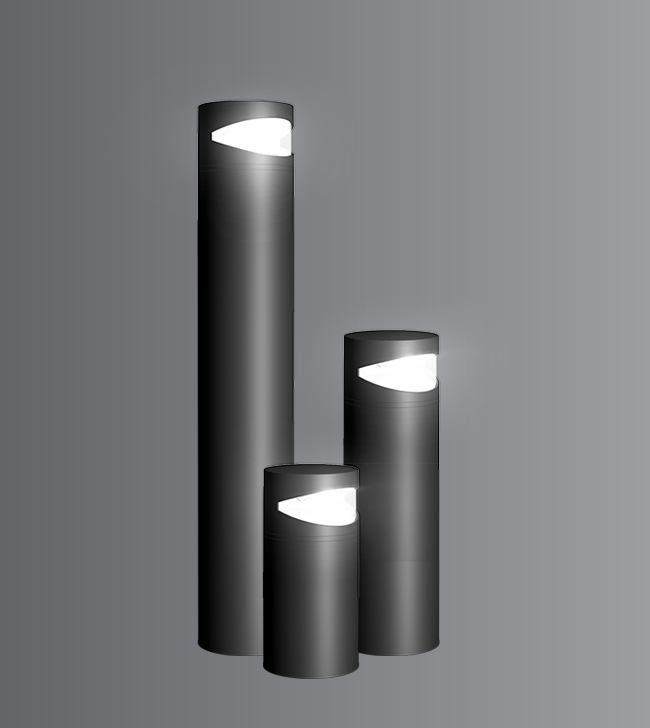

Ajna Slice Bollard
These environmentally friendly LED garden and pathway luminaires, create a pleasant light distribution with a high degree of visual comfort. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture. Clean Lines and pure form are the underlying elements of this series of LED bollards, designed to provide asymmetric light emission of 180°.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• Shielded light source .
• For optimum illumination, these luminaires can be supplied in three different heights.
• Reflector system made of spun aluminium (powder coated white).
• Non yellowing UV stabilized polycarbonate clear diffuser.
• Silicone gasket
• Die-cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4731-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

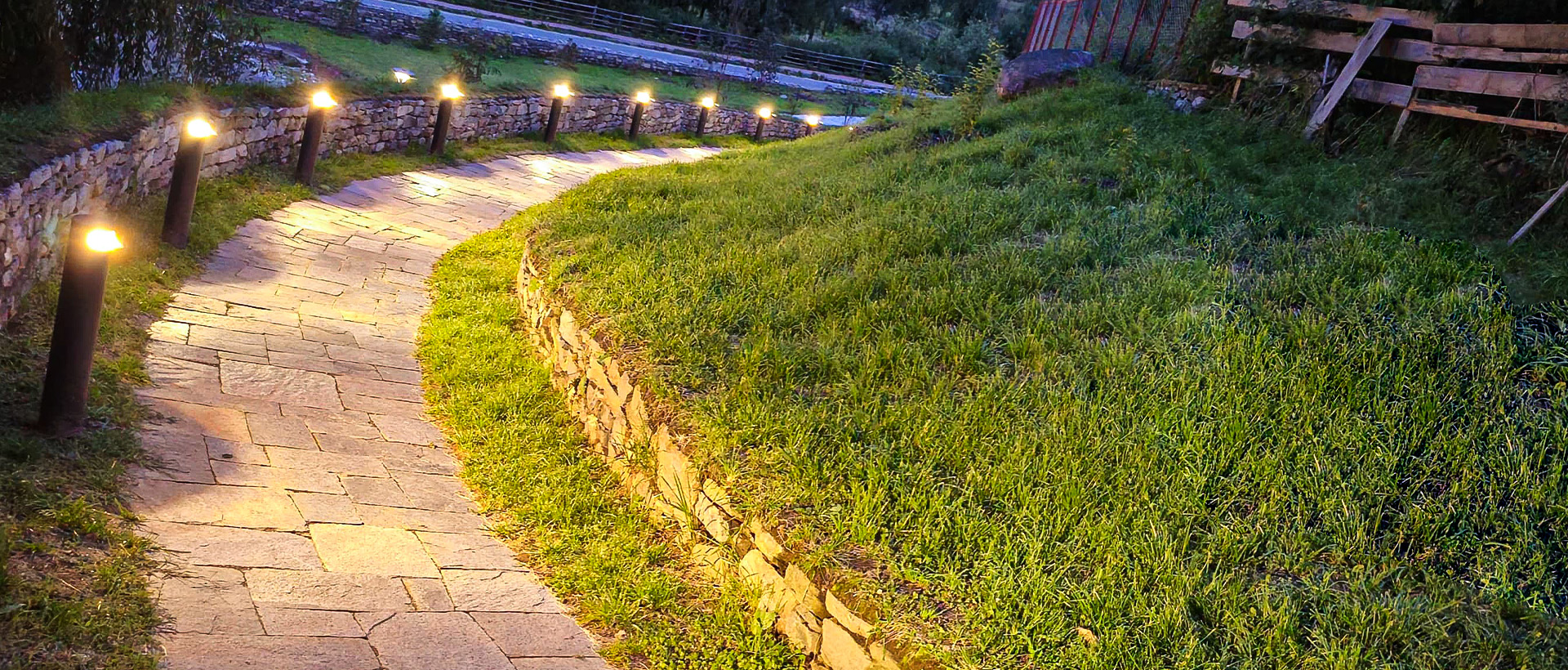

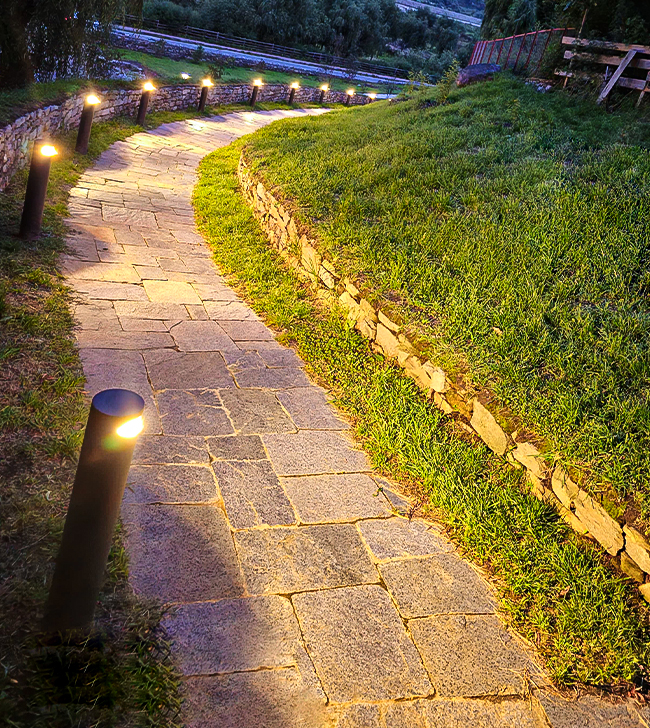

Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey (RAL : 7016)
• Jet black (RAL : 9005)

Downloads
Catalogue Page

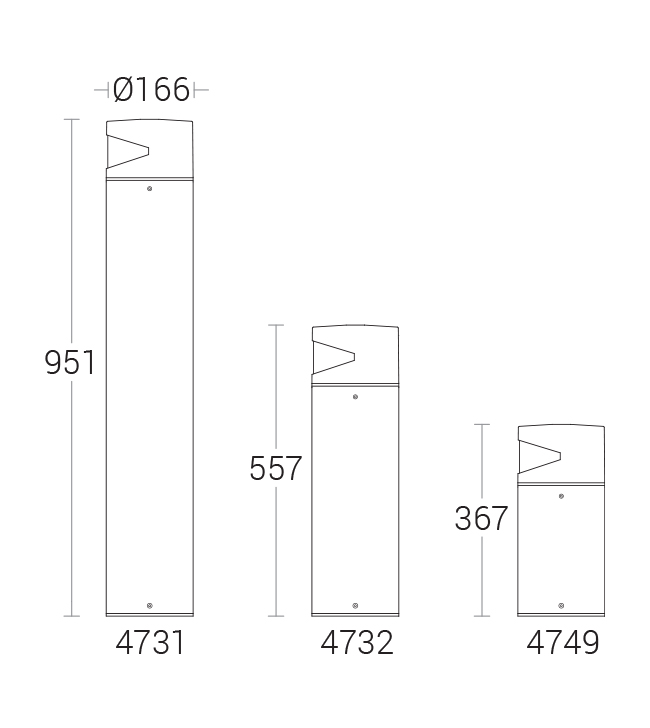

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-473112W LED WW,CW,NW, Clear PolycarbonateØ166 x 935mmM3
Detailed Foundation Drawing
4731.pdf
KL-473212W LED WW,CW,NW, Clear PolycarbonateØ166 x 400mmM3
Detailed Foundation Drawing
4732.pdf
KL-474912W LED WW,CW,NW, Clear PolycarbonateØ166 x 215mmM3
Detailed Foundation Drawing
4749.pdf
