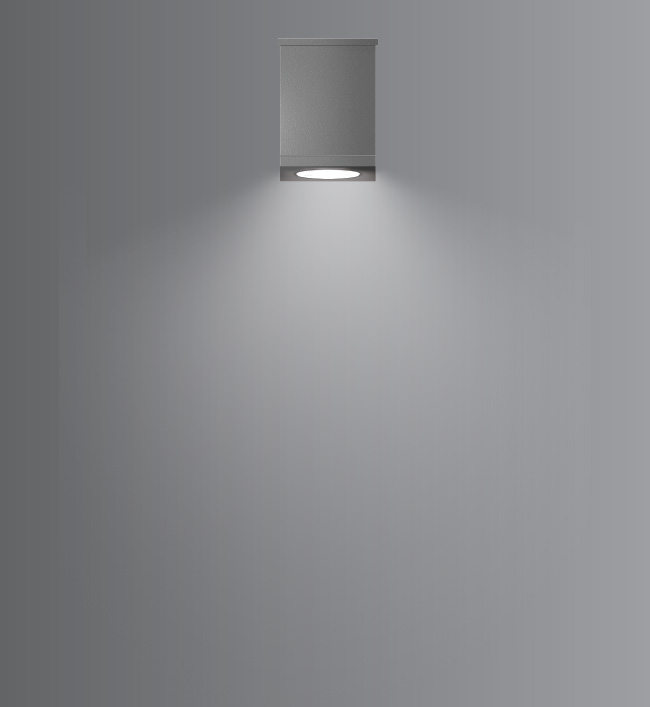

Quad Mini
Compact and efficient ceiling mounted down lighters.High protection class & lumen output makes it versatile solution for both indoor & outdoor applications.

Product Description
• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Hybrid optics with lens & reflector combination for higher efficiency,lower optical losses with optimum glare suppression.
• Cast aluminium plate for surface mounting onto the ceiling.
• Surface mounting on ceiling using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3643-CCT (Colour Temperature)
• Available CCT : 2700K,4000K(CW on request).

Product Benefits
• High luminous efficiency at reduced wattage.
• Quick & simple installation.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

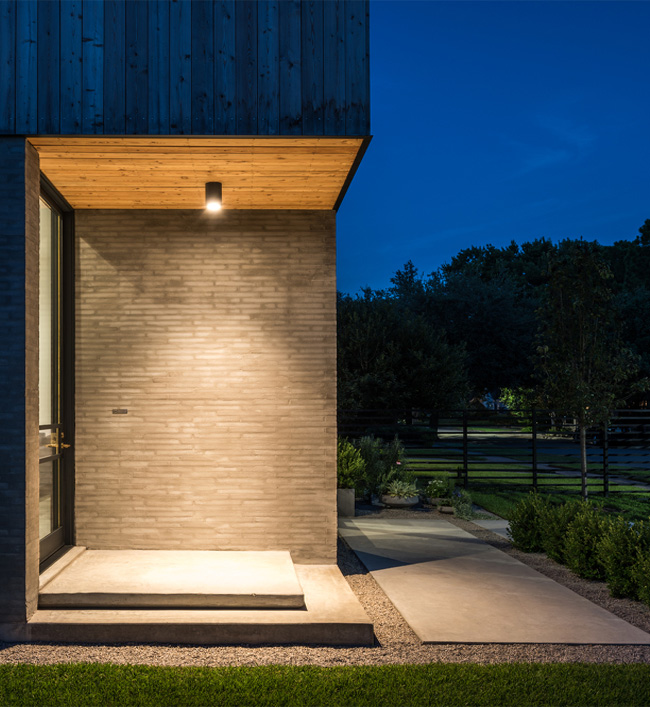

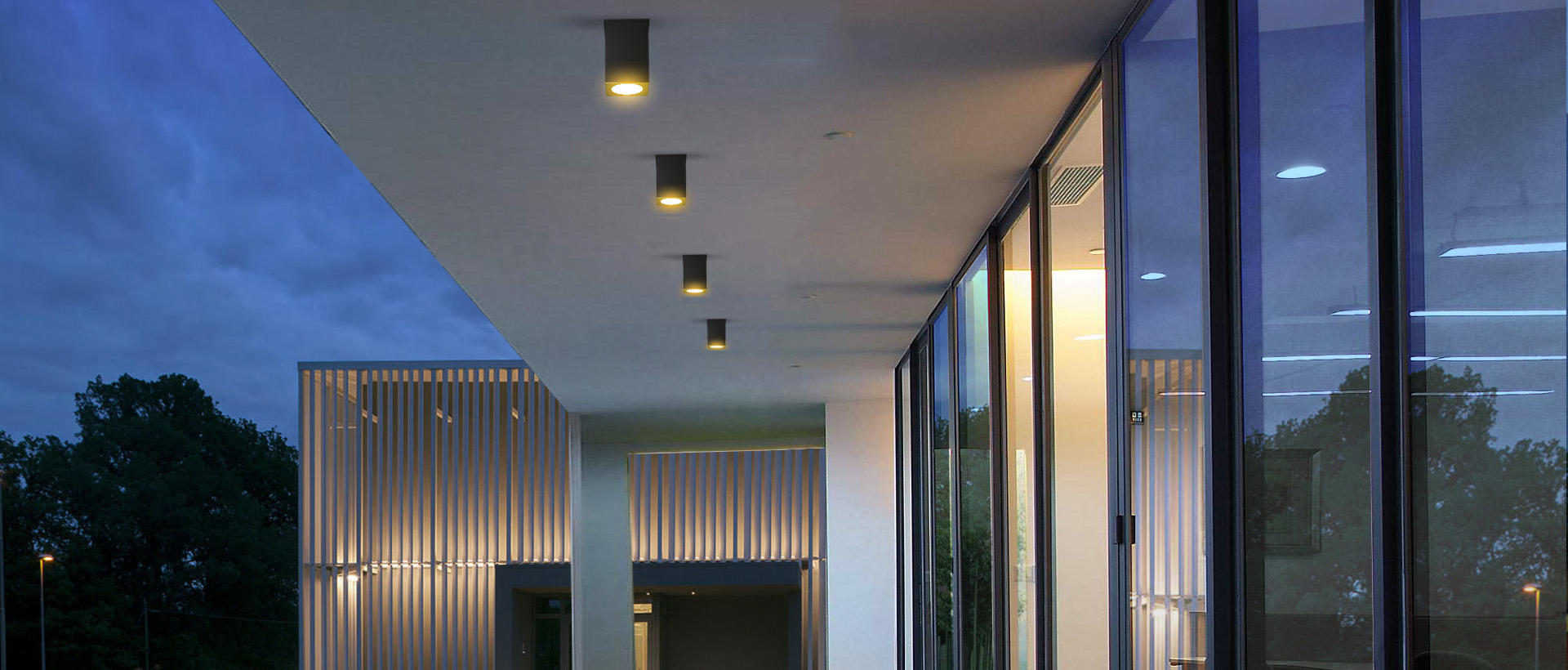

Area of Application
Lobbies & Foyers,Retail outlets,Corridors,Corporate,Residential & Educational premises,Hospitality Industry,Commercial & Business Centers.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

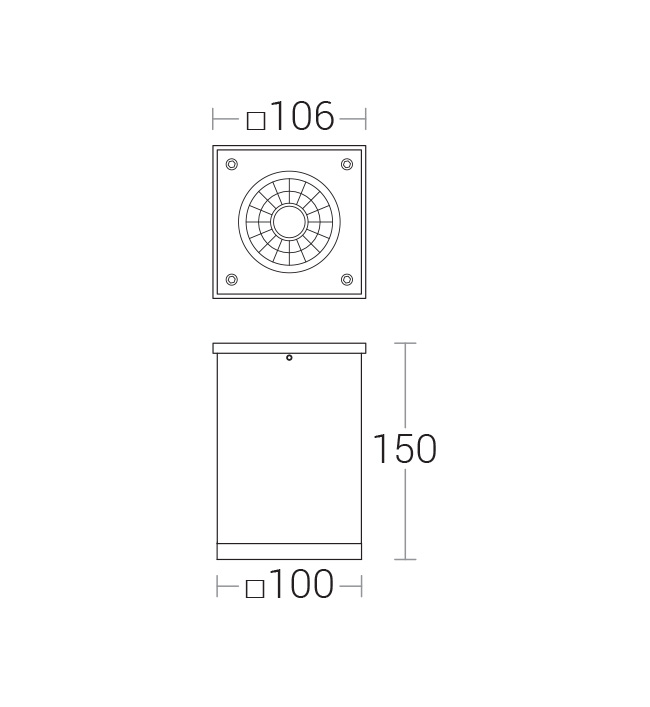

KL-36436W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened GlassSq 106 x 150mmKL-3643.IES
KL-3643.IES
KL-3643.IES
KL-3643-BA15°-NW.IES
KL-3643.PDF
KL-3643.PDF
KL-3643.PDF
KL-3643-BA15°-NW.PDF
3643.pdf
KL-3643.txt
KL-364412W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened GlassSq 106 x 150mmKL-3644.IES
KL-3644.IES
KL-3644.IES
KL-3644-BA15°-NW.IES
KL-3644.PDF
KL-3644.PDF
KL-3644.PDF
KL-3644-BA15°-NW.PDF
3644.pdf
KL-3644.txt
KL-364518W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened GlassSq 106 x 150mmKL-3645.IES
KL-3645.IES
KL-3645.IES
KL-3645-BA15°-NW.IES
KL-3645.PDF
KL-3645.PDF
KL-3645.PDF
KL-3645-BA15°-NW.PDF
3645.pdf
KL-3645.txt
