Asymmetrical surface mount floor washer with a wide beam for glare free illumination of pathways, entrances etc. Sustainable LED technology offers durability and optimal light output with lower power consumption.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive A2 stainless steel fasteners.
• Non yellowing UV stabilized clear polycarbonate / acrylic diffuser.
• EPDM / Silicone gasket.
• Die cast aluminium installation housing for surface mounting on wall.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-2767-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High visual comfort
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for walkway architecture.

Area of Application

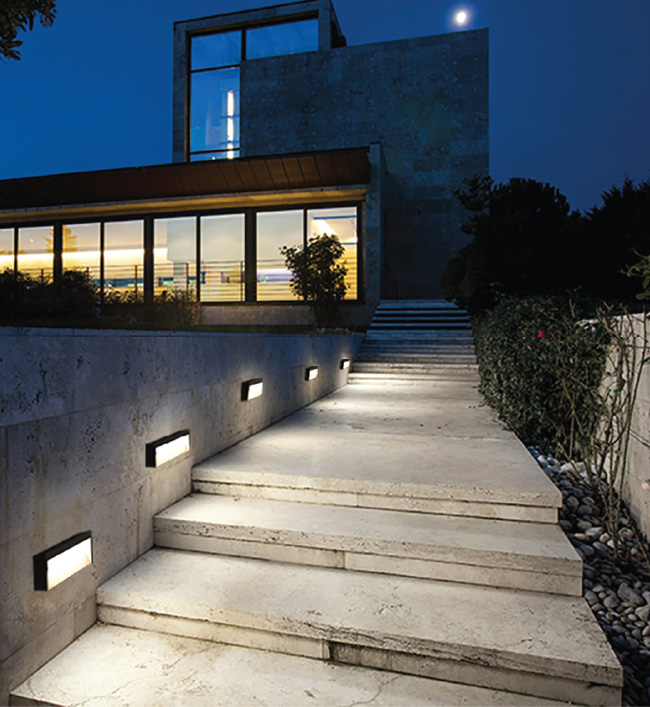

Staircase, Patios, Walkways, Passages, Porches, Entrance & Exits for both Interior & Exterior applications.

Available Finish
Pure polyester powder coat
• Graphite grey
• Anthracite grey (RAL : 7016)
• Jet black (RAL : 9005)
IDWattageDimension IESPhotometryTechnical Datasheet

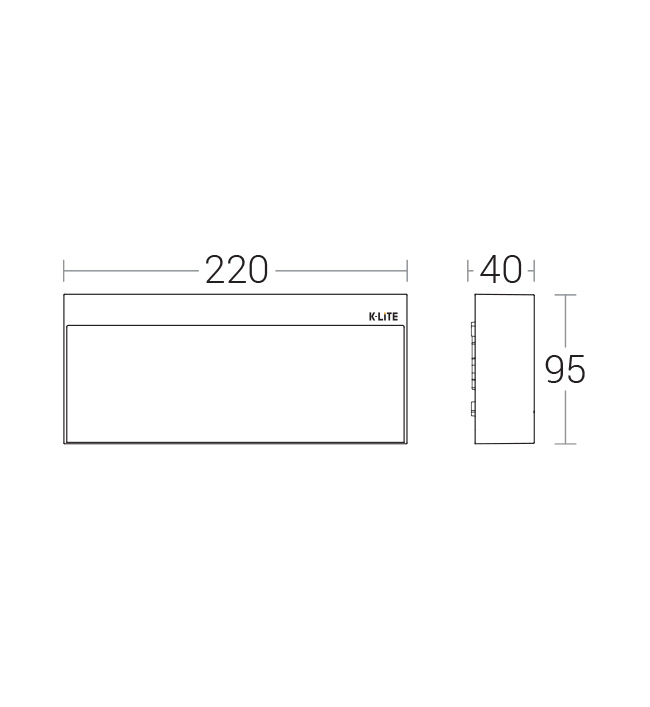

KL-276712W LED WW,CW,NW, Clear Polycarbonate220 x 40 x 95mmKL-2767.IESKL-2767.PDF2767.pdf
