Diya

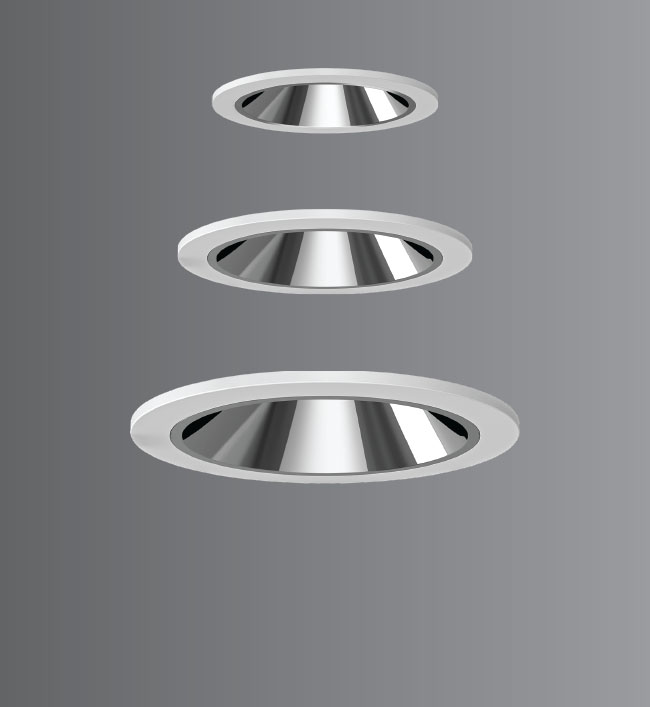

Recess mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The luminaires have high quality LED source with low energy consumption and long service life. Designed for low / high mounting heights. The luminaires makes them especially suitable for installation in ceiling for both interior and exterior applications. Elegantly designed fixture under the green lighting, energy efficient category.

Product Description
• Luminaire made of die-cast aluminium has excellent mechanical strength, aluminium heat sink for better thermal management.
• Reflector with excellent optical effects.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4241-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6500K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Quick & simple installation.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Retail Sector, Commercial & Business Centers, Residential town ships, Educational Institutes, Hospitality & Industrial sector, Entrance foyer.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page

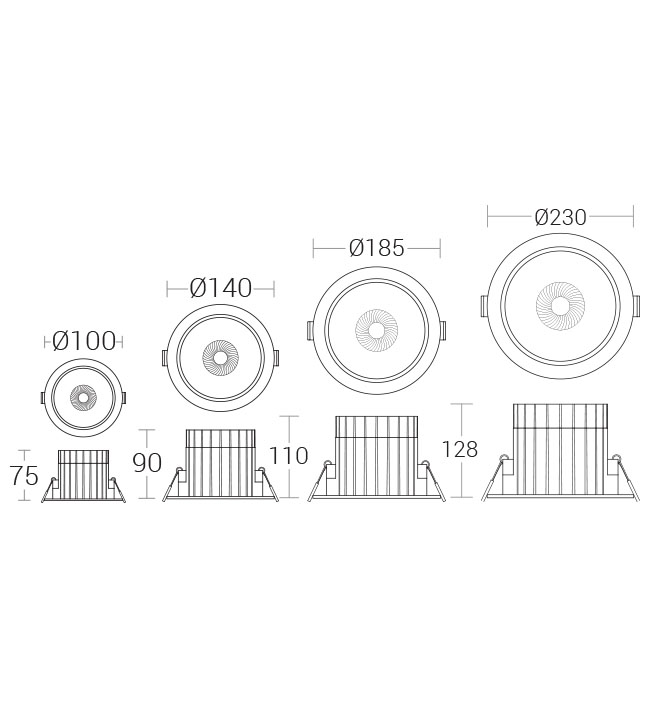

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-424330W LED 2700K,3000K,4000K,6500K BA:45°, Translucent Polycarbonate Optical CoverC.O.D : Ø155mmKL-4243.IES
KL-4243.IES
KL-4243.PDF
KL-4243.PDF
4243.pdf
KL-424740W LED 2700K,3000K,4000K,6500K BA:60°, Translucent Polycarbonate Optical CoverC.O.D : Ø200mmKL-4247.IES
KL-4247.IES
KL-4247.PDF
KL-4247.PDF
4247.pdf
