Wall Cylin Mini

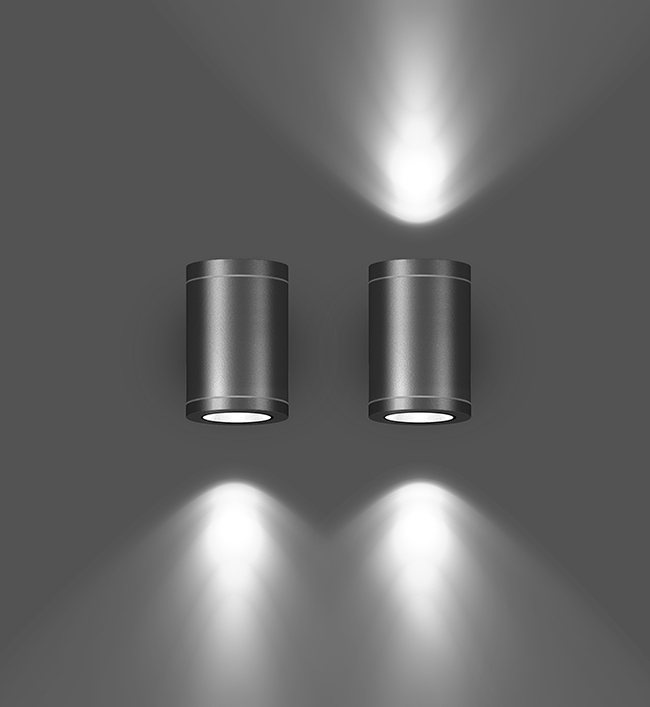

Wall mounted UP / DOWN wall luminaires for accent and ambient lighting.Aesthetically pleasing and precise light where it is required.Sophisticated form to suit all types of applications with fully shielded light source for up / down light effects.

Product Description
• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Die Cast aluminium base for easy installation onto the wall / column.
• Cable entries for through-wiring of mains supply cable.
• Prewired with GU10 holder and suitable for operation on 240V,50Hz single phase ac supply.

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation with low maintenance.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.

Area of Application

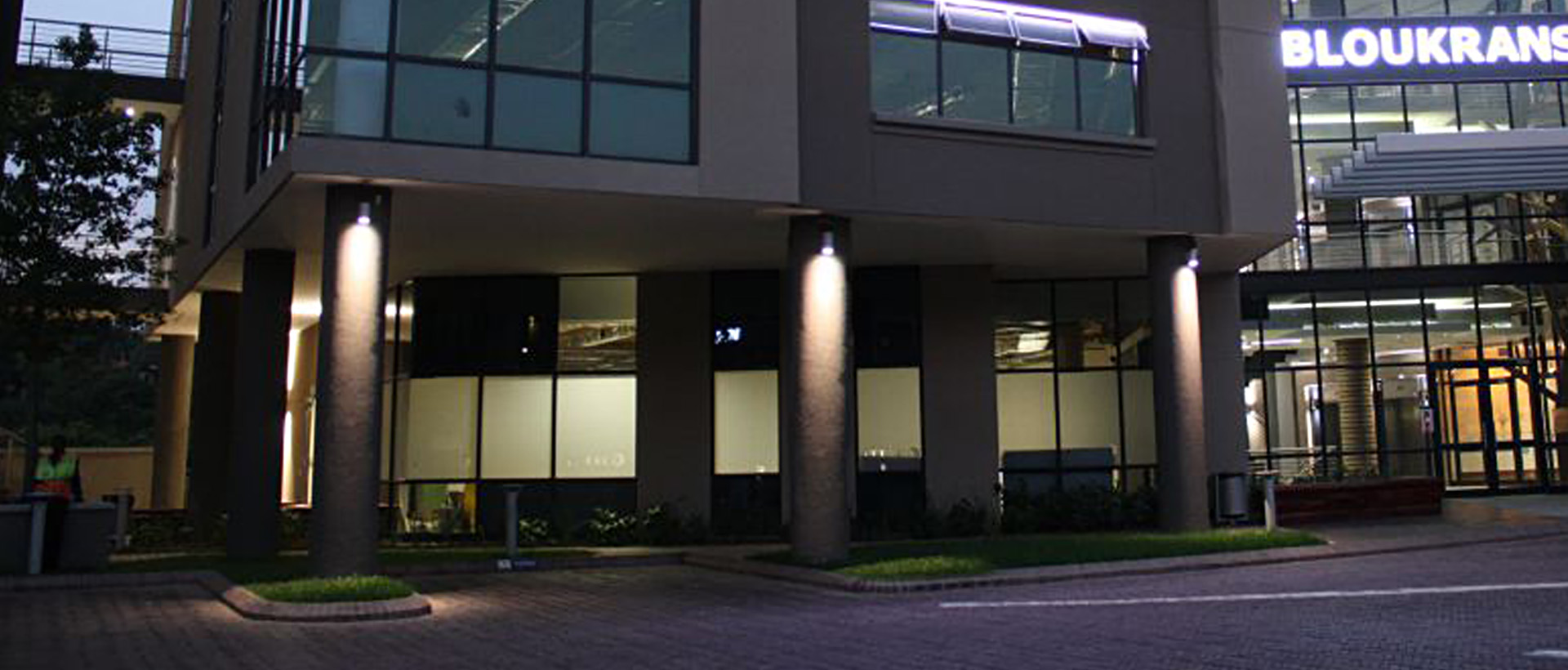

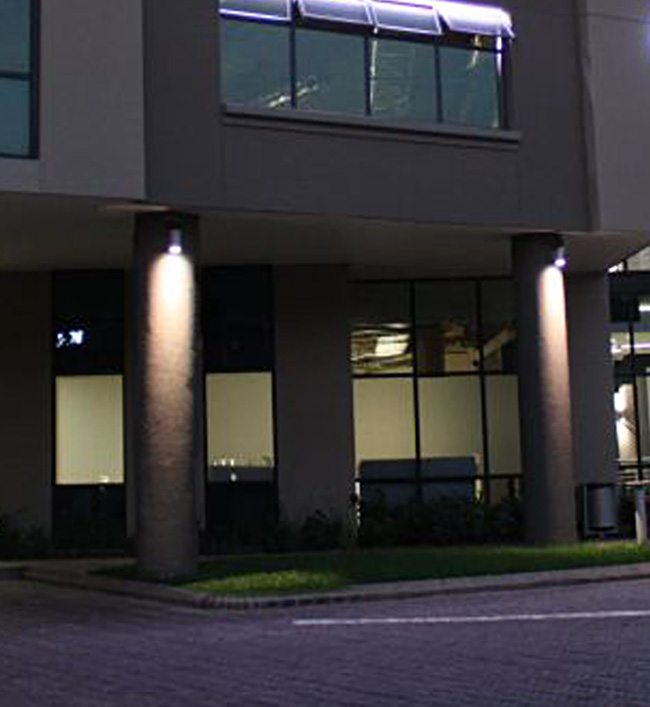

Residential,Building facade,commercial centres,Passages,Walkways,Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-3666GU10 Holder, Clear Toughened Glass145 x 100 x 150mmW32

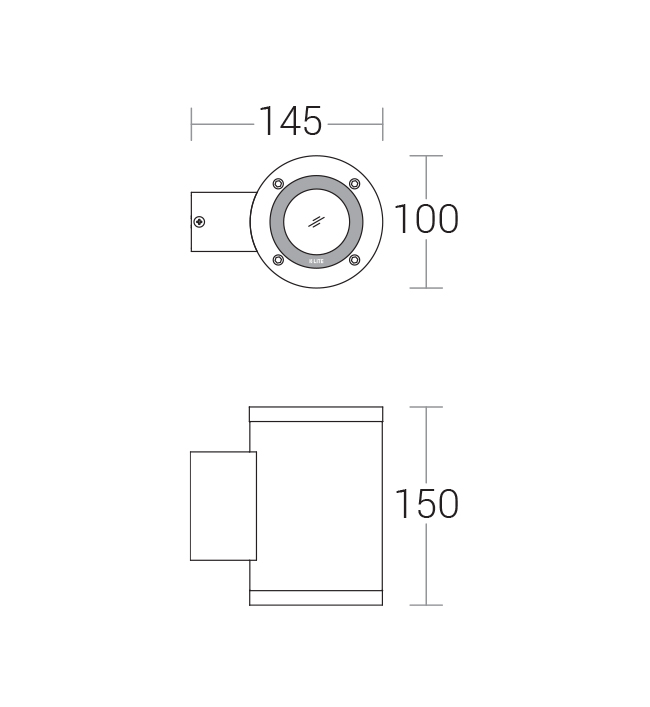

Detailed Foundation Drawing
3666.pdf
KL-3666.txt
KL-36672 x GU10 Holder, Clear Toughened Glass145 x 100 x 150mmW32
Detailed Foundation Drawing
3667.pdf
KL-3667.txt
